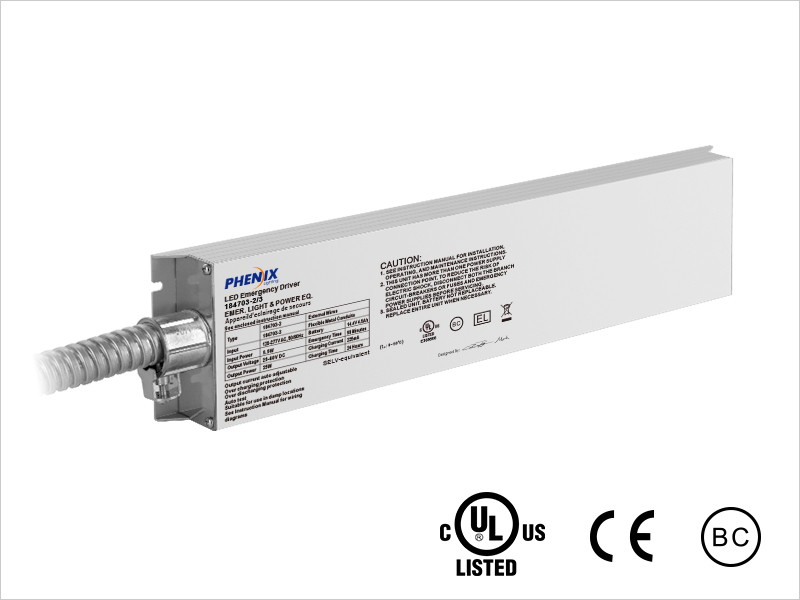

Class 2 Output LED Emergency Driver
|
184703-3
•
Emergency operation of LED luminaires, for both factory and field installation
•
Perfectly compatible with most AC LED drivers
•
Constant emergency power output: Class 2 output voltage (10-60V), output current auto adjustable
•
metal conduits, External Battery, UL Recognized
•
Slim aluminum housing
•
Suitable for indoor, dry and damp applications
Type #
Emergency Power & Output Voltage
184703-3
25W , 25-60VDC
|
Downloads
|
Product Specs
| Type | 184703-3 |
| Rated voltage | 120-277V AC 50/60Hz |
| Rated current | 0.1A |
| Rated power | 5.5W |
| Emergency output power | 25W |
| Output voltage | 25-60V DC |
| Output current | 1 A (Max.) |
| AC driver output current | 5 A (Max.) |
| Operation frequency | 320kHz≥f≥50kHz |
| Power factor | 0.5 |
| Battery | Ni-MH/Li-ion |
| Charging time | 24 Hours |
| Discharge time | >90 Minutes |
| Charging current | 230mA |
| Life time | 5 years |
| Charging cycles | >500 |
| Operation temperature | 0-50℃ (32°F-122°F) |
| Efficiency | 80% |
| Abnormal protection | Inrush, over voltage, charging and discharging, open circuit, short circuit protection with auto reset |
| Wire | 0.75-1.5mm² |
| EMC/FCC/IC standard | EN55015, EN61547, EN61000-3-2, EN61000-3-3, FCC part 15, ICES-005 |
| Safety standard | EN61347-1, EN61347-2-7, UL924, CSA C.22.2 No. 141 |
| Meas. mm [inch] | L358 [14.09] x W82 [3.23] x H30 [1.18] Mounting center: 351 [13.82] |
