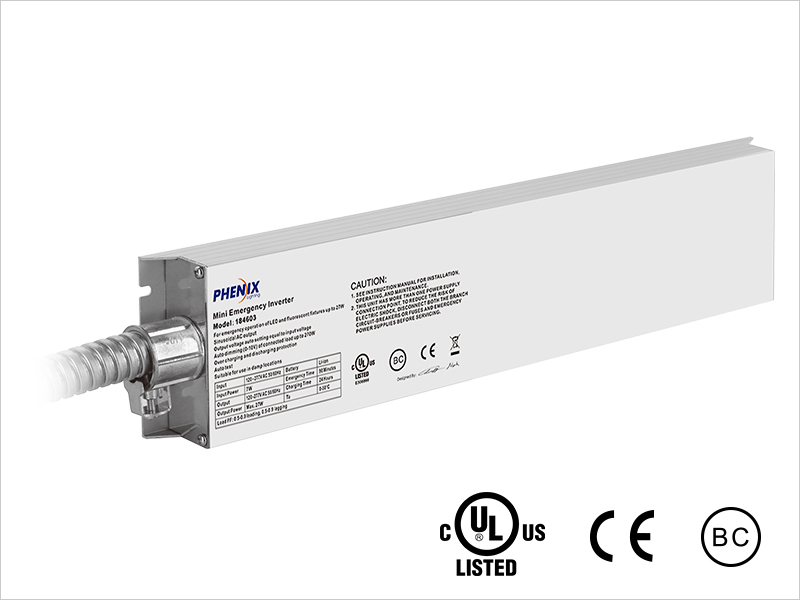

Mini Emergency Inverter
|
184603
•
Pure sinusoidal AC output
•
For emergency operation of LED and fluorescent fixtures up to 27W
•
Auto dimming (0-10V) of connected load up to 270W
•
Auto Test
•
Extremely slim aluminium housing and light in weight
•
Suitable for indoor, dry and damp applications
Type #
Emergency Power & Output Voltage
184603
27W, 120-277VAC
|
Downloads
|
Product Specs
| Type | 184603 |
| Lamp type | LED, fluorescent or incandescent bulbs, tubes and lighting fixtures |
| Rated voltage | 120-277VAC 50/60Hz |
| Rated current | 0.1A |
| Rated power | 7W |
| Power factor | 0.5-0.9 leading, 0.5-0.9 lagging |
| Output voltage | 120-277VAC 50/60Hz |
| Output power | 27W |
| Max. power of 0-10V dimming load | 270W |
| Battery | Li-ion |
| Charging time | 24 Hours |
| Discharge time | 90 Minutes |
| Charging current | 0.34A (Max.) |
| Life time of module | 5 Years |
| Charging cycles | >1000 |
| Operation temperature | 0-50℃ (32°F-122°F) |
| Efficiency | 80% |
| Abnormal protection | Over load, over current, inrush, over voltage, over temperature, charging and discharging, open circuit, short circuit protection with auto reset |
| Wire | 18AWG/0.75mm² |
| EMC/FCC/IC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005 |
| Safety standard | EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141 |
| Meas. mm [inch] | L346 [13.62]xW82 [3.23]xH30 [1.18] Mounting center: 338 [13.31] |
