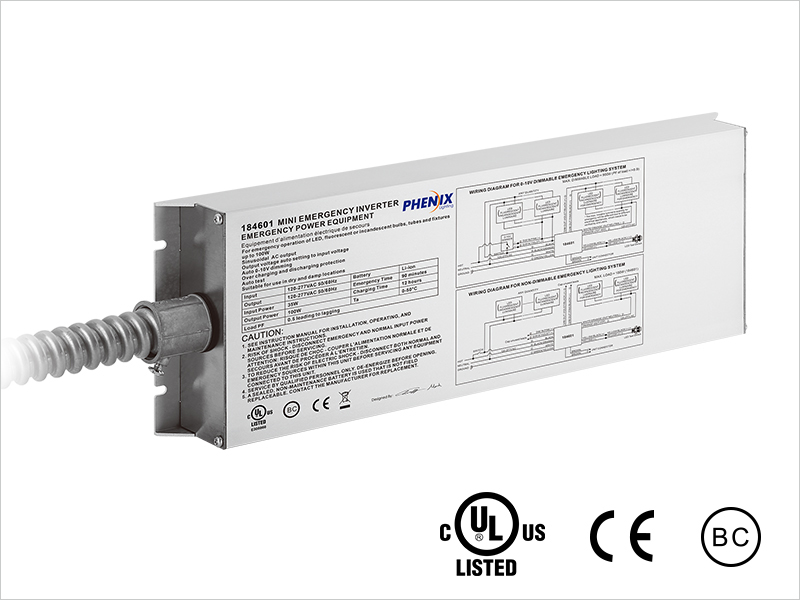

Mini Emergency Inverter
|
184601
•
Pure sinusoidal AC output
•
Patented APD technology - Auto Preset Dimming (0-10V) the connected load in emergency mode
•
Output voltage auto setting according to different input voltages
•
Auto Test
•
Extremely slim aluminium housing and light in weight
•
Suitable for indoor, dry and damp applications
Type #
Emergency Power & Output Voltage
184601
100W, 120-277VAC
|
Downloads
|
Product Specs
| Type | 184601 |
| Lamp type | LED, fluorescent or incandescent bulbs, tubes and lighting fixtures |
| Rated voltage | 120-277V AC 50/60Hz |
| Rated current | 0.48A@120V |
| Rated power | 35W |
| Power factor | 0.5 leading to lagging |
| Output voltage | 120-277V AC 50/60Hz |
| Output power | 100W |
| Max. power of 0-10V dimming load | 900W@120V |
| Battery | Li-ion |
| Charging time | 12 Hours |
| Discharge time | 90 Minutes |
| Charging current | 600mA |
| Lifetime | 5 Years |
| Charging cycles | >1000 |
| Operation temperature | 0-50℃ (32°F -122°F) |
| Efficiency | 84% |
| Abnormal protection | Over load, over current, inrush, over voltage, over temperature, charging and discharging, open circuit, short circuit protection with auto reset |
| Wire | 16-18AWG/0.75-1.5mm² |
| EMC/FCC/IC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005 |
| Safety standard | EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141 |
| Meas. mm [inch] | L346 [13.63] x W115 [4.53] x H41.5 [1.63] Mounting center: 338 [13.31] |
