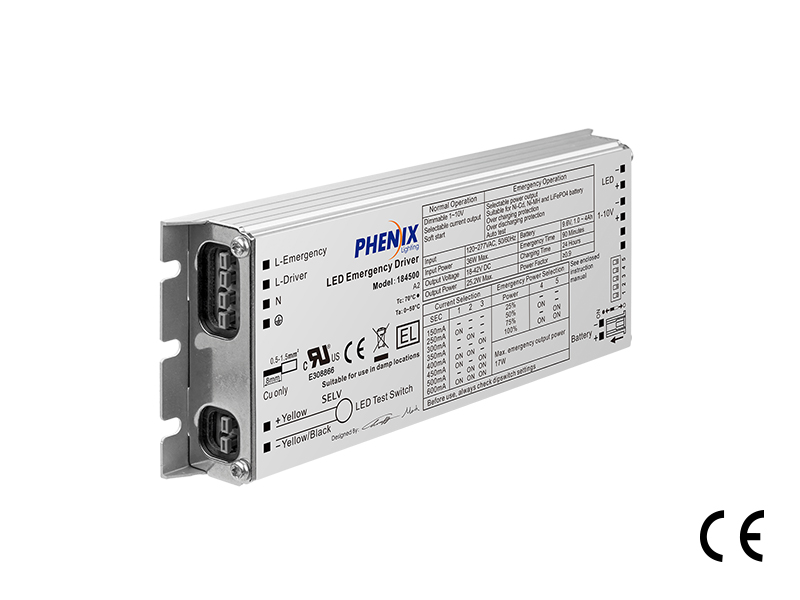

Integrated LED AC + Emergency Driver
|
184500-A2
•
For normal and emergency operation of LEDs, no need an extra LED driver
•
AC driver function in normal mode: constant current and multi-current selectable output, 0-10V dimmable
•
Four emergency output powers selectable
•
Auto Test
•
Slim aluminium housing
•
Suitable for indoor, dry and damp applications
Type #
Emergency Power & Output Voltage
184500-A2-8C1.0
184500-A2-8C2.0
184500-A2-8C4.0
184500-A2-8C5.0
3.5W , 18-60VDC
7W , 18-60VDC
14W , 18-60VDC
17W , 18-60VDC
|
Downloads
|
Product Specs
| Type | 184500-A2-8C1.0 | 184500-A2-8C2.0 | 184500-A2-8C4.0 | 184500-A2-8C5.0 |
| Rated voltage | 120-277V AC 50/60Hz | |||
| Rated current | 0.3A | |||
| Rated power | 36W | |||
| Emergency output power | 25% (3.5W) | 50% (7W) | 75% (14W) | 100% (17W) |
| Output voltage | 18-60V DC | |||
| Operation frequency | 320kHz≥f≥50kHz | |||
| Power factor | 0.9 | |||
| Battery | Ni-Cd/Ni-MH/LiFEPO4/Li-ion | |||
| Charging time | 24 Hours | |||
| Discharge time | >90 Minutes | |||
| Charging current | 50-250mA | |||
| Life time | 5 years | |||
| Charging cycles | >500 | |||
| Operation temperature | 0-50℃ (32°F-122°F) | |||
| Output current | 150mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 600mA ±5% | |||
| Efficiency | 75% | |||
| Abnormal protection | Inrush, over voltage, charging and discharging, open circuit, short circuit protection with auto reset | |||
| Wire | 0.75-1.5mm² | |||
| EMC/FCC/IC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005 | |||
| Safety standard | EN 61347-1,EN 61347-2-7, EN 61347-2-13, UL924, CSA C.22.2 No. 141 | |||
| Meas. Module mm [inch] | L175 [6.89] x W65 [2.56] x H22 [0.87] Mounting Center: 167 [6.57] | |||
| Meas. Battery pack mm [inch] | 9.6V 1.0Ah: L228 [8.98] x W30 [1.18] x H17 [0.67] Mounting Center: 217 [8.54] | |||
| 9.6V 1.5/2.0Ah: L195 [7.68] x W45.5 [1.79] x H24.5 [0.96] Mounting Center: 184 [7.24] | ||||
| 9.6V 4.0Ah: L263 [10.35] x W65 [2.56] x H35 [1.38] Mounting Center: 252 [9.92] | ||||
