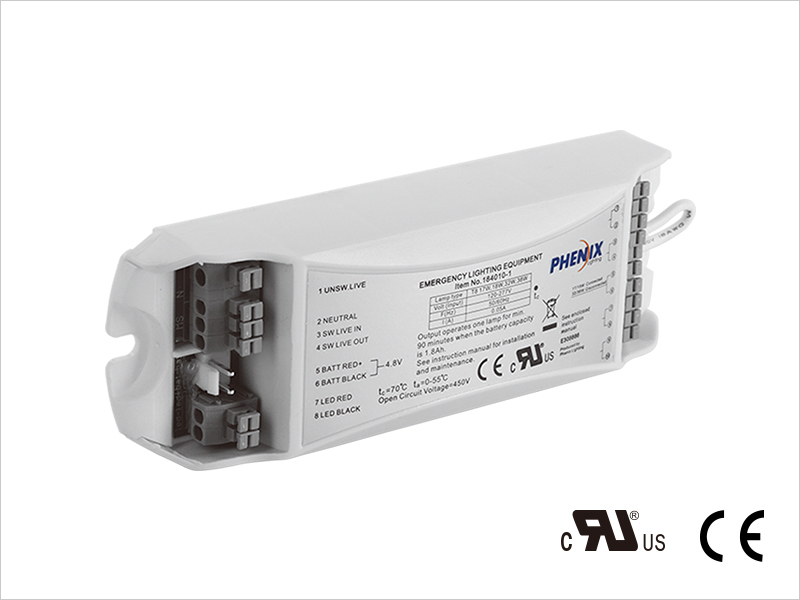

Universal Fluorescent Emergency Ballast
|
184010-1
•
For emergency operation of fluorescent lamps
•
Normal and emergency mode conversion within 0.3 seconds
•
Over-discharge protection to extend the batteries life time
•
External high temperature Ni-CD battery pack
Type #
Emergency Power & Output Voltage
184010-1
3.5W, 120-277VAC
|
Downloads
|
Product Specs
| Type | 184010-1 |
| Lamp type | Most 2'- 4' single bipin T8 to T12, 17W,18W,32W,36W, T5 28W, compact 42W, circular 40W fluorescent lamps |
| Rated voltage | 120-277 VAC |
| Rated current | 0.05A |
| Rated power | 3.5W |
| Operation frequency | 320kHz≥f≥50kHz |
| Power factor | 0.5 |
| Battery | Ni-Cd |
| Charging time | 24 hours |
| Discharge time | >90 Minutes |
| Charging current | 0.13A |
| Life time | 5 years |
| Charging cycles | >500 |
| Operation temperature | 0-50℃ (32°F-122°F) |
| Initial lumen output | 500LM |
| Efficiency | 70% |
| Wire | 0.75-1.5mm² |
| Abnormal protection | Inrush, charging and discharging |
| EMC& FCC IC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3; FCC part 18; ICES-005 |
| Safety standard | EN 61347-1, EN 61347-2-7; UL924, CSA C.22.2 No. 141 |
| Meas. Module mm [inch] | L150 [5.91] x W49 [1.93] x H30.5 [1.20] Mounting Center: 140 [5.51] |
| Meas. Battery pack mm [inch] | L200 [7.87] x W32 [1.26] x H25 [0.98] Mounting Center: 190 [7.48] |
