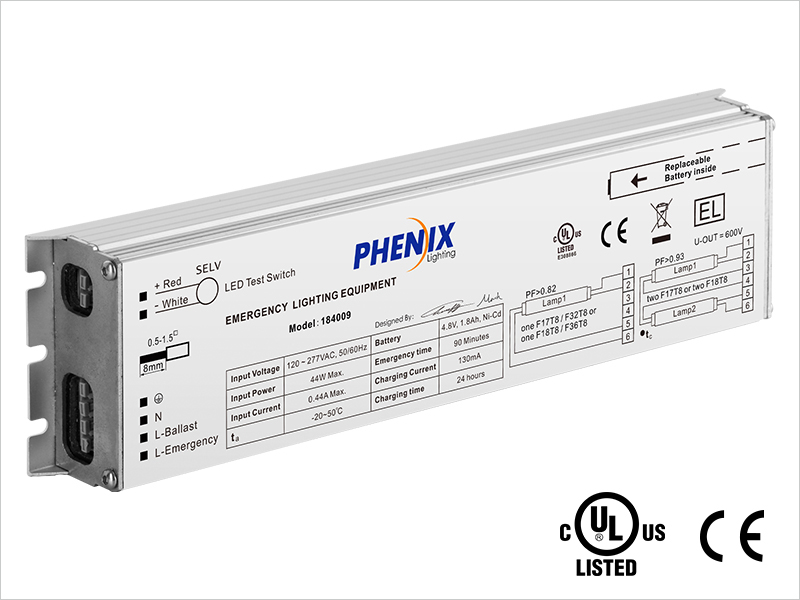

UL Emergency Ballast
|
184009
•
For normal and emergency operation of fluorescent lamps, no need an extra electronic ballast
•
Normal and emergency mode conversion within 0.3 seconds
•
Built-in battery pack replaceable
•
Aluminum housing
Type #
Emergency Power & Output Voltage
184009
44W, 120-277VAC
|
Downloads
|
Product Specs
| Type | 184009 |
| Lamp type | T8 2x17W, 2x18W, 1x17W, 1x18W, 1x32W, 1x36W |
| Rated voltage | 120-277VAC 50/60Hz |
| Rated current | 0.44A |
| Rated power | 44W |
| Operation frequency | 320kHz≥f≥50kHz |
| Power factor | >0.9 |
| Battery | Ni-Cd |
| Charging time | 24 Hours |
| Discharge time | >90 minutes |
| Charging current | 130mA |
| Life time | 5 years |
| Charging cycles | >500 |
| Operation temperature | 0-50℃ (32°F-122°F) |
| Initial lumen output | 500LM |
| Efficiency | 70% |
| Wire | 0.75-1.5mm² |
| Abnormal protection | Over load, over current, inrush, over voltage, charging and discharging, open circuit, short circuit protection with auto reset |
| EMC& FCC IC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 18; ICES-005 |
| Safety standard | EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141 |
| Meas. Module mm [inch] | L250 [9.84] x W65 [2.56] x H28.5 [1.12] Mounting Center: 242 [9.53] |
