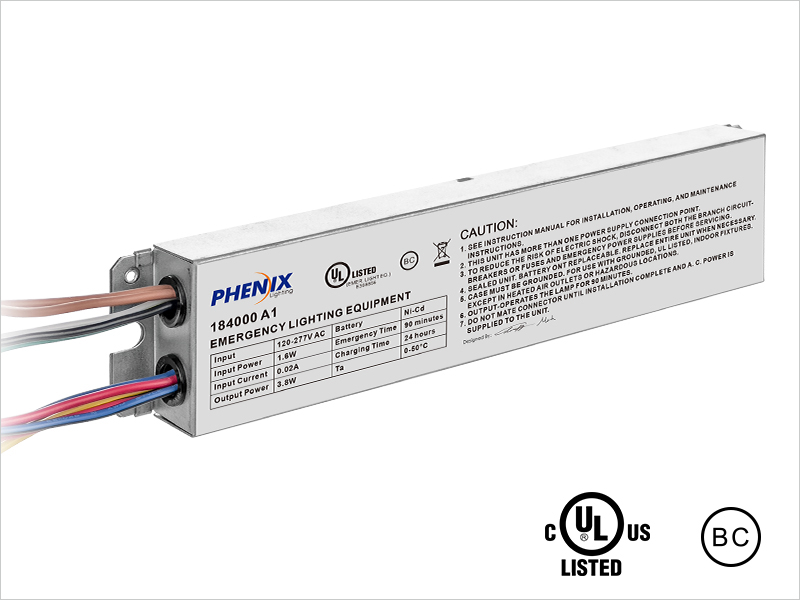

UL Emergency Ballast
|
184000
•
For emergency operation of fluorescent lamps
•
Normal and emergency mode conversion within 0.3 seconds
•
Built-in high temperature Nicd battery pack
Type #
Emergency Power & Output Voltage
184000
3.5W, 120-277VAC
|
Downloads
|
Product Specs
| Type | 184000 A1 |
| Lamp type | Type A and Type A+B LED lamps |
| Rated voltage | 120-277V AC |
| Rated current | 0.05A |
| Rated power | 2W |
| Operation frequency | 320kHz≥f≥50kHz |
| Power factor | 0.5 |
| Battery | Ni-Cd |
| Charging time | 24 Hours |
| Discharge time | >90 Minutes |
| Charging cycles | ≥500 |
| Charging current | 110mA |
| Operation temperature | 0-50℃ (32°F-122°F) |
| Output power | Max.4W |
| Efficiency | 80% |
| Abnormal protection | Inrush, charging and discharging |
| Wire | 18AWG/0.75 mm² |
| EMC& FCC IC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3; FCC part 15; ICES-005 |
| Safety standard | EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141 |
| Meas. mm [inch] | L242 [9.53] x W52 [2.05] x H26 [1.02] Mounting Center: 230 [9.06] |
