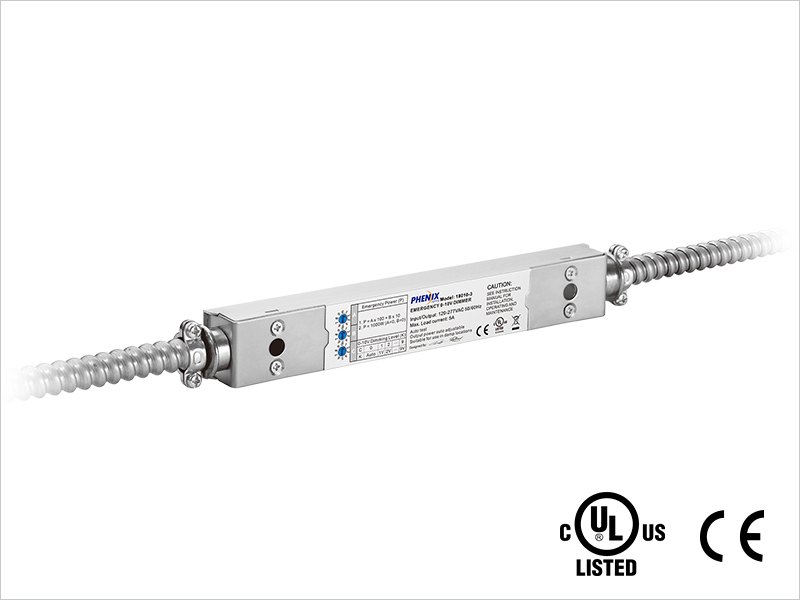

UL924 Dimmable Emergency Lighting Control Device
|
18010-3
•
Patented APD technology allows generator or inverter supplied emergency lighting to work under auto or preset 0-10V dimming level regardless of wall switch position
•
Great energy and cost saving benefits by reduce the power consumption for the emergency lighting
•
Flexible and precise setting to distribute or make the utmost use of the power of a 10-1000W generator or inverter
•
Supports lighting load up to 5A
•
Dimmer, sensor or other lighting controls override capable
•
24VDC fire alarm override capable
•
External wires with metal conduits
•
Slim size
•
Suitable for indoor, dry and damp applications
•
Factory or field installation
Type #
Emergency Power & Output Voltage
18010-3
18010-3
10-600W, 120VAC
10-1000W, 277VAC
|
Downloads
|
Product Specs
| Type | 18010-3 |
| Rated voltage | 120-277V AC 50/60Hz |
| Rated current | 20mA |
| Max. Throughput current | 5A |
| Input emergency power | 10-600W@120V, 10-1000W@277V (Set by the dipswitch A and B) |
| Output 0-10V dimming level | Auto dimming or preset of 1V, 2V -- 9V (Set by the dipswitch C) |
| Max. 0-10V Load power | 600W@120V, 1385W@277V |
| Life time | 5 Years |
| Operating temp | -20-65°C (4° F- 149° F) |
| Wire | 16-18AWG/1.0-1.5mm² |
| EMC& FCC IC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005 |
| Safety standard | EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141 |
| Meas. mm [inch] | L211 [8.31] x W30 [1.18] x H22 [0.87] Mounting center: 162 [6.38] |
