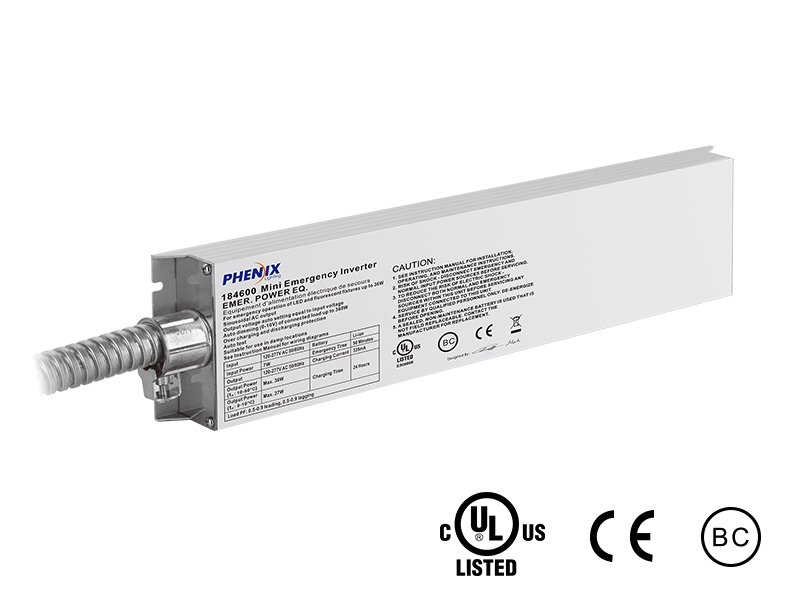

Mini Emergency Inverter

184600(-XX)

l Pure sinusoidal AC output

l Patented APD technology - Auto Preset Dimming (0-10V) the connected load in emergency mode

l Output voltage auto setting according to different input voltages

l Auto Test

l Extremely slim aluminium housing and light in weight

l Suitable for indoor, dry and damp applications

184600

36W, 120-277VAC 50/60Hz

Downloads
Product Specs

Type

184600

Lamp type

LED, fluorescent or incandescent bulbs, tubes and lighting fixtures

Rated voltage

120-277VAC 50/60Hz

Rated current

0.1A

Rated power

7W

Power Factor

0.5-0.9 leading, 0.5-0.9 lagging

Output voltage

120-277VAC 50/60Hz

Output power

36W

Max. power of 0-10V dimming load

360W

Battery

Li-ion

Charging time

24 Hours

Discharge time

90 Minutes

Charging current

0.34A (Max.)

Life time of module

5 Years

Charging cycles

>1000

Operation temperature

0-50℃ (32°F-122°F)

Efficiency

80%

Abnormal protection

Over load, over current, inrush, over voltage, over temperature, charging and discharging, open circuit , short circuit protection with auto reset

Wire

18AWG/0.75mm2

EMC/FCC/IC standard

EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005

Safety standard

EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141

Meas. mm [inch]

L346 [13.62]xW82 [3.23]xH30 [1.18] Mounting center: 338 [13.31]
