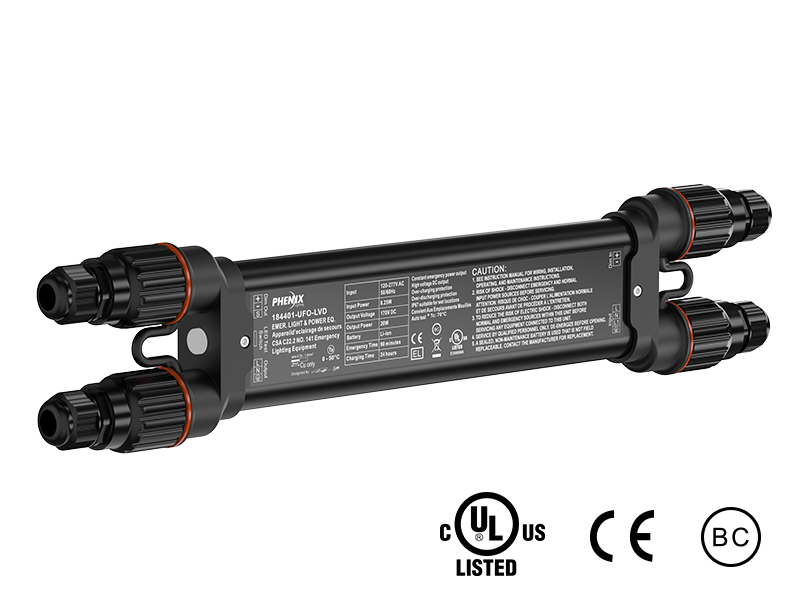

UFO Emergency Kit

18440X-UFO-LVD

l Fast wiring and installation without opening the housing of the luminaire or the emergency driver

l Auto dimming (0-10V) of connected load up to 10 times of emergency power

l High voltage DC output

l Constant emergency power output

l Emergency output is convertible between 90 and 180 minutes

l Auto Test

l Extremely slim aluminium housing and light in weight, built-in battery

l IP67 rating, suitable for outdoor and wet applications

Type #
Emergency Power & Output Voltage

184401-UFO-LVD-20

20W, 170VDC

184402-UFO-LVD-40

40W, 170VDC

184403-UFO-LVD-60

60W, 170VDC

Downloads
Product Specs

Type

184401-UFO-LVD-20

184402-UFO-LVD-40

184403-UFO-LVD-60

Lamp type

LED High-bay or UFO luminaire

Rated voltage

120-277VAC 50/60Hz

Output voltage

170VDC

Rated current

0.04-0.09A

0.045-0.11A

0.05-0.14A

Rated power

6-9W

7.5-11W

10-14.5W

Power Factor

>0.75@120V

Max. Output power

20W

40W

60W

Max. power of

0-10V dimming load

200W

400W

600W

The luminaire’s minimum dimming power should be less than or equal to the Max. Output power of LED emergency driver.

Battery

Li-ion

Charging time

24 Hours

Discharge time

90 Minutes

Charging current

750mA

Life time

5 Years

Charging cycles

>1000

Operation temperature

0-50°C(32°F-122°F)

Efficiency

85%

Abnormal protection

Over load, over current, inrush, over temperature, charging and discharging, open circuit , short circuit protection with auto reset

Wire

18-14AWG/0.75-2.5mm2

EMC/FCC/IC standard

EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005

Safety standard

EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141

Meas. mm [inch]

L470 [18.50] x W96 [3.78] x 38 [1.5]mm

L540 [21.26] x W96 [3.78] x 38 [1.5]mm

L610 [24.02] x W96 [3.78] x 38 [1.5]mm

Order type No. Description

18440X-UFO                    - YYY                                                        -(Z)ZZ

X=1: 20W or below          -LVD: Input 120-277VAC Dimmable         -(SalesCode) + emergency power

X=2: 40W or below

X=3: 60W or below
