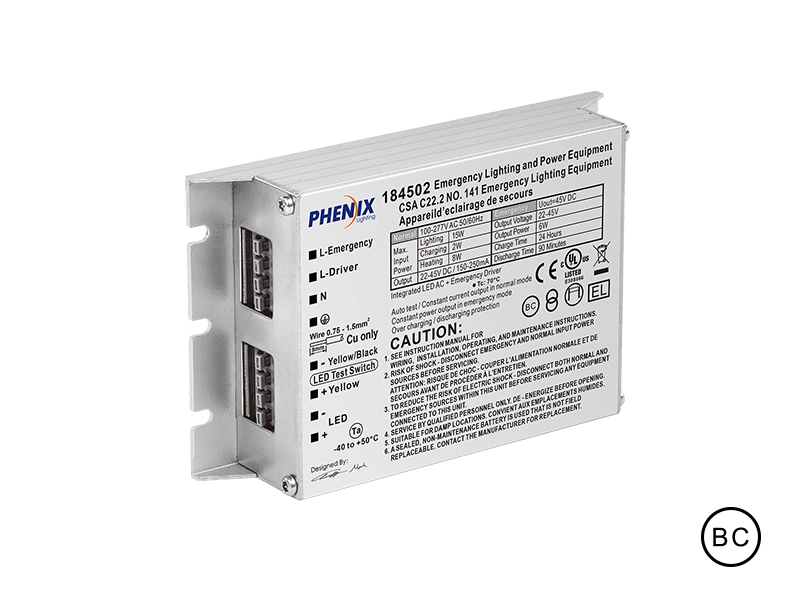

Cold Pack LED AC + Emergency Driver

184502/3

l 22-45VDC output

l Emergency operation in -40°C to +50°C

l Slim aluminum housing, built-in heating and insulation battery pack

l Auto Test

Type #
Emergency Power & Output Voltage

184502

6W,22-45VDC

184503

6W, 22-45VDC

Downloads
Product Specs

Type

184502

184503

Rated voltage

100-277VAC 50/60Hz

Rated current @100V

0.24A

0.43A

Operation frequency

320kHz ≥ f ≥ 50kHz

Max.Input Power

Lighting

14W

33W

Charging

2W

2W

Heating

8W

8W

Power factor

0.9 @120V

Output voltage

22-45VDC

Output current

150-250mA preset

250-600mA preset

Emergency output power

6W

Battery

Li-ion

Charging time

24 Hours

Discharge time

>90 Minutes

Charging current

0.13A

Life time

5 years

Charging cycles

>500

Operation temperature

-40~50°C (-40-122°F)

Efficiency

75%

80%

Abnormal protection

Inrush, over voltage, over temperature, charging and discharging, open circuit

Wire

18AWG/0.75mm2

EMC/FCC/IC standard

EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,FCC part 15, ICES-005

Safety standard

EN 61347-1,EN 61347-2-7, EN 61347-2-13, UL924,CSA C.22.2 No. 141

Meas. mm [inch]

L134 [5.28] x W82 [3.23] x H30 [1.18]

Mounting center: 124 [4.88]

L154 [6.06] x W82 [3.23] x H30 [1.18]

Mounting center: 144 [5.67]
