Parallelable Modular Inverter 184804
Short Description:
184804 Paralleable Modular Inverter 400W, 184804 Mini Emergency Inverter 400W, Pure sinusoidal AC output.Patented APD technology – Auto Preset Dimming (0-10V) the connected load in emergency mode. Flexible parallelable combination from 1 to 5 modules, Max. emergency power up to 2000W.
1. Pure sinusoidal AC output.
2. Patented APD technology - Auto Preset Dimming (0-10V) the connected load in emergency.
3. Modular design, flexibly parallelable combination from 1 to 5 modules, Max. emergency output power up to 2000W.
4. Output voltage auto setting according to different input voltages.

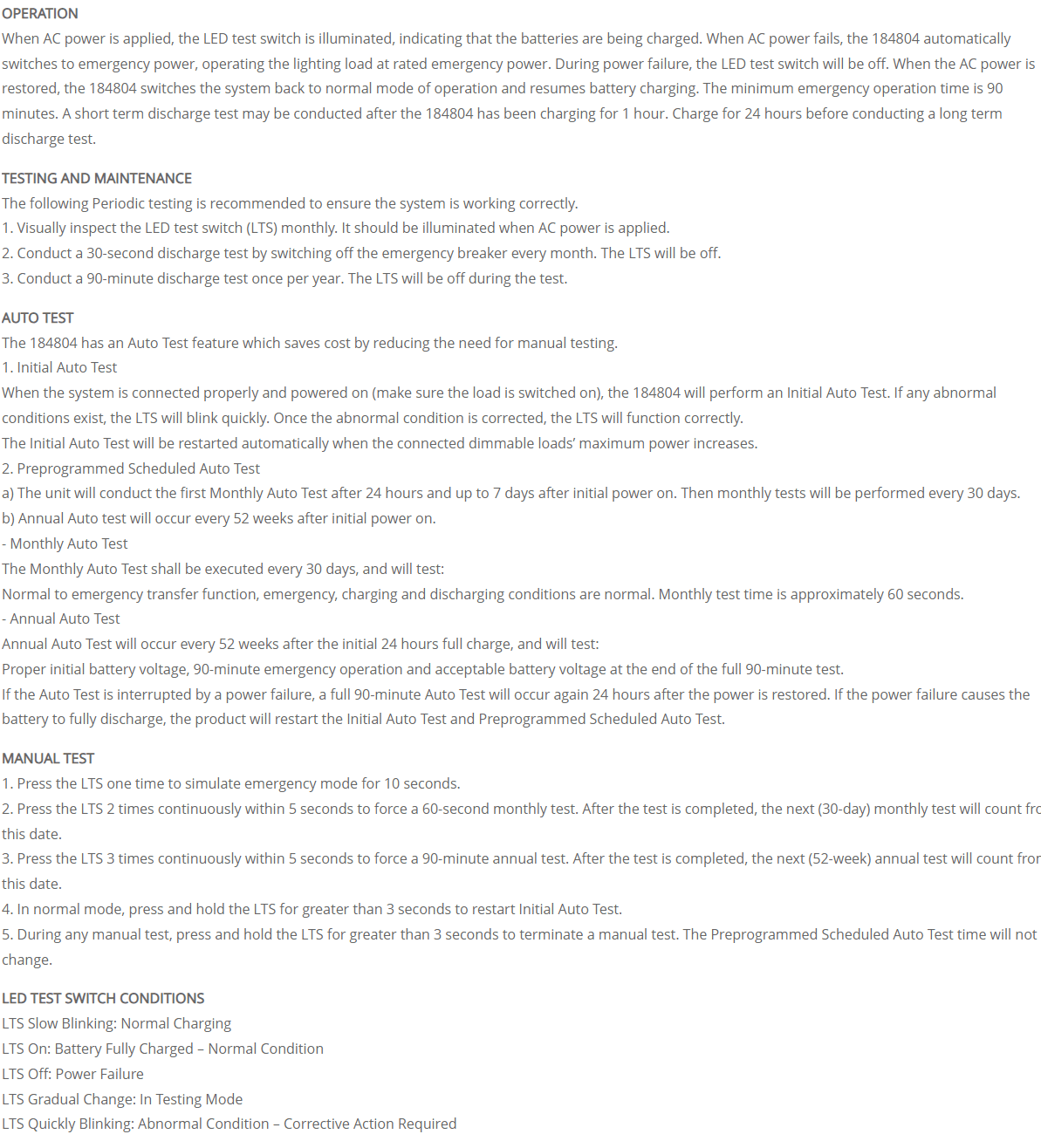

5. Auto Test.
6. Extremely slim aluminum housing, light weight of 11.5Kgs (25.4Lbs).
7. Suitable for indoor, dry and damp applications.
| Type | 184804 |
| Lamp type | LED, fluorescent or incandescent bulbs, tubes and lighting fixtures |
| Rated voltage | 120-277VAC 50/60Hz |
| Rated current | 1A@120V; 0.55A@277V |
| Rated power | 65W |
| Load power factor | 0.9 leading to lagging |
| Output voltage | 120-277VAC 50/60Hz |
| Output power | 400W |
| Max. power of 0-10V dimming load | 2000W@120V; 4000W@277V |
| Battery | LiFePO4 |
| Charging time | 24 Hours |
| Discharge time | 90 Minutes |
| Charging current | 1.44A |
| Life time | 5 years |
| Charging cycles | >1000 |
| Operation temperature | 0-50℃ (32°F-122°F) |
| Efficiency | 90% |
| Abnormal protection | Over voltage, over current, Inrush current limiting, over temperature, short circuit, open circuit |
| Wire | 10-18AWG/0.75-6.0mm2 |
| EMC/FCC/IC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005 |
| Safety standard | EN 61347-1, EN 61347-2-7,UL924, CSA C.22.2 No. 141 |
| Meas. mm [inch] | L605 [23.82] x W280 [11.02] x H60 [2.36] Mounting center: 534 [21.02] |
184804
|
Item No. |
L mm [inch] |
M mm [inch] |
W mm [inch] |
H mm [inch] |
|
184804 |
605 [23.82] |
534 [21.02] |
280 [11.02] |
60 [2.36] |

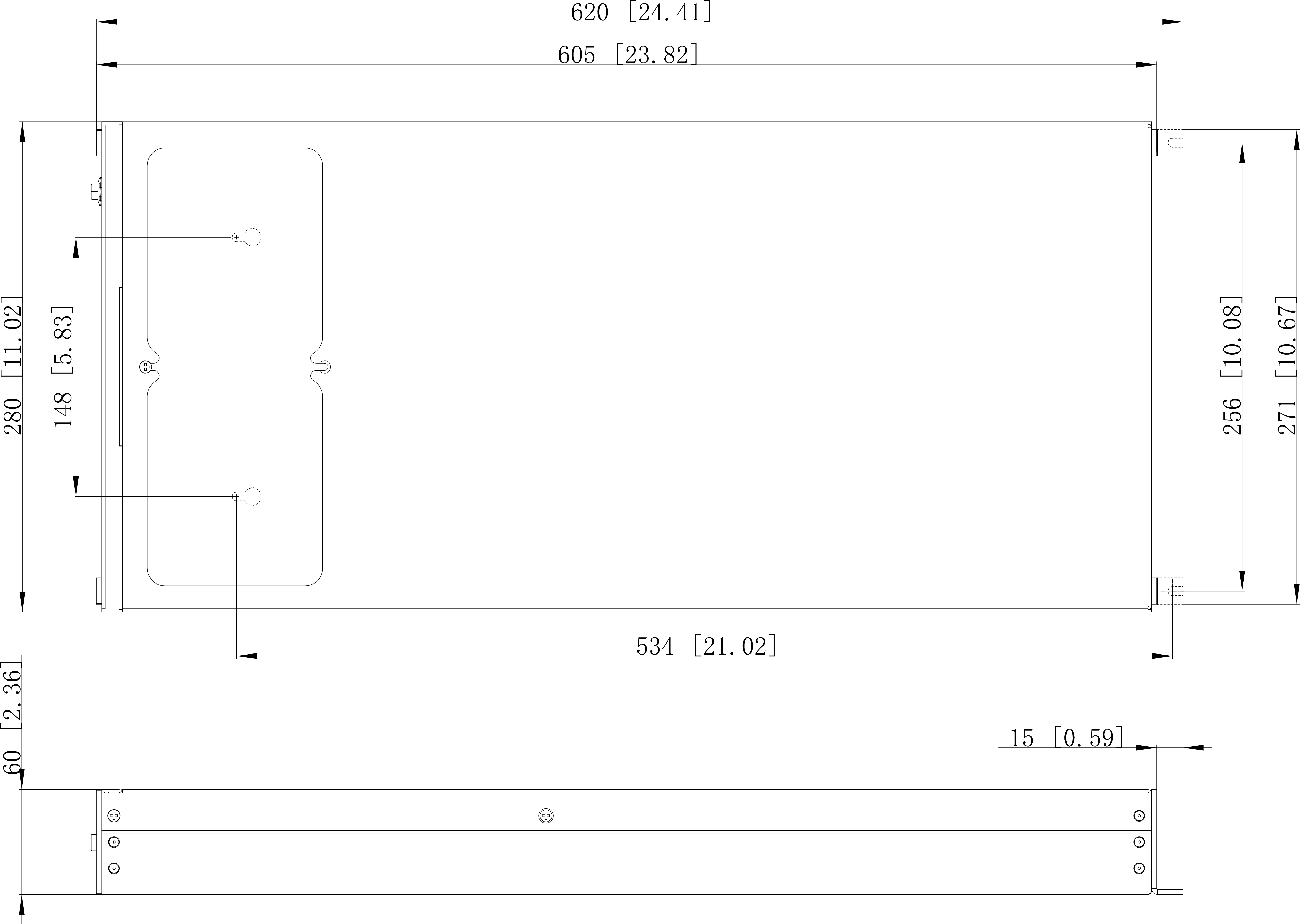

Dimension unit: mm [inch]
Tolerance: +/-1 [0.04]

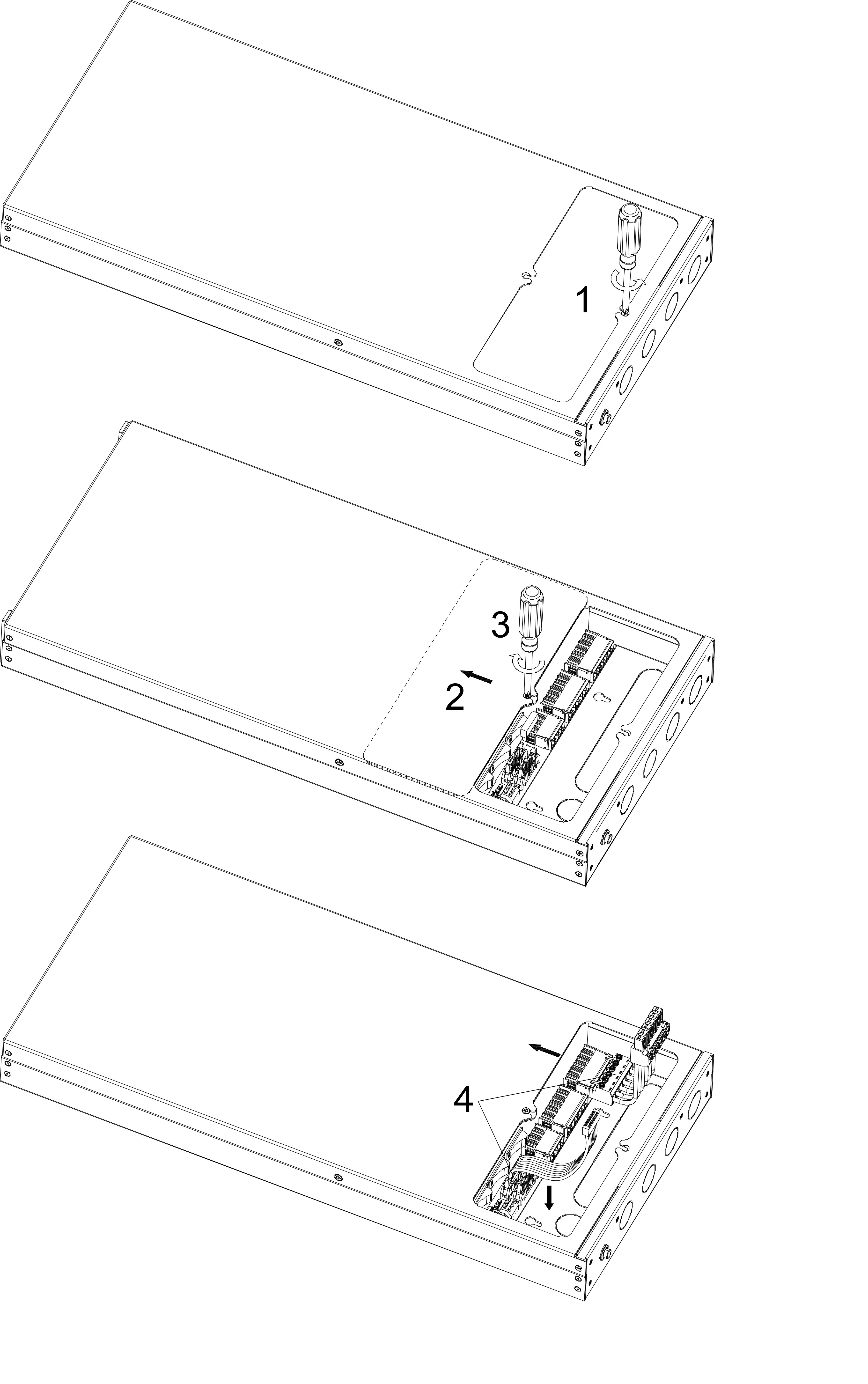

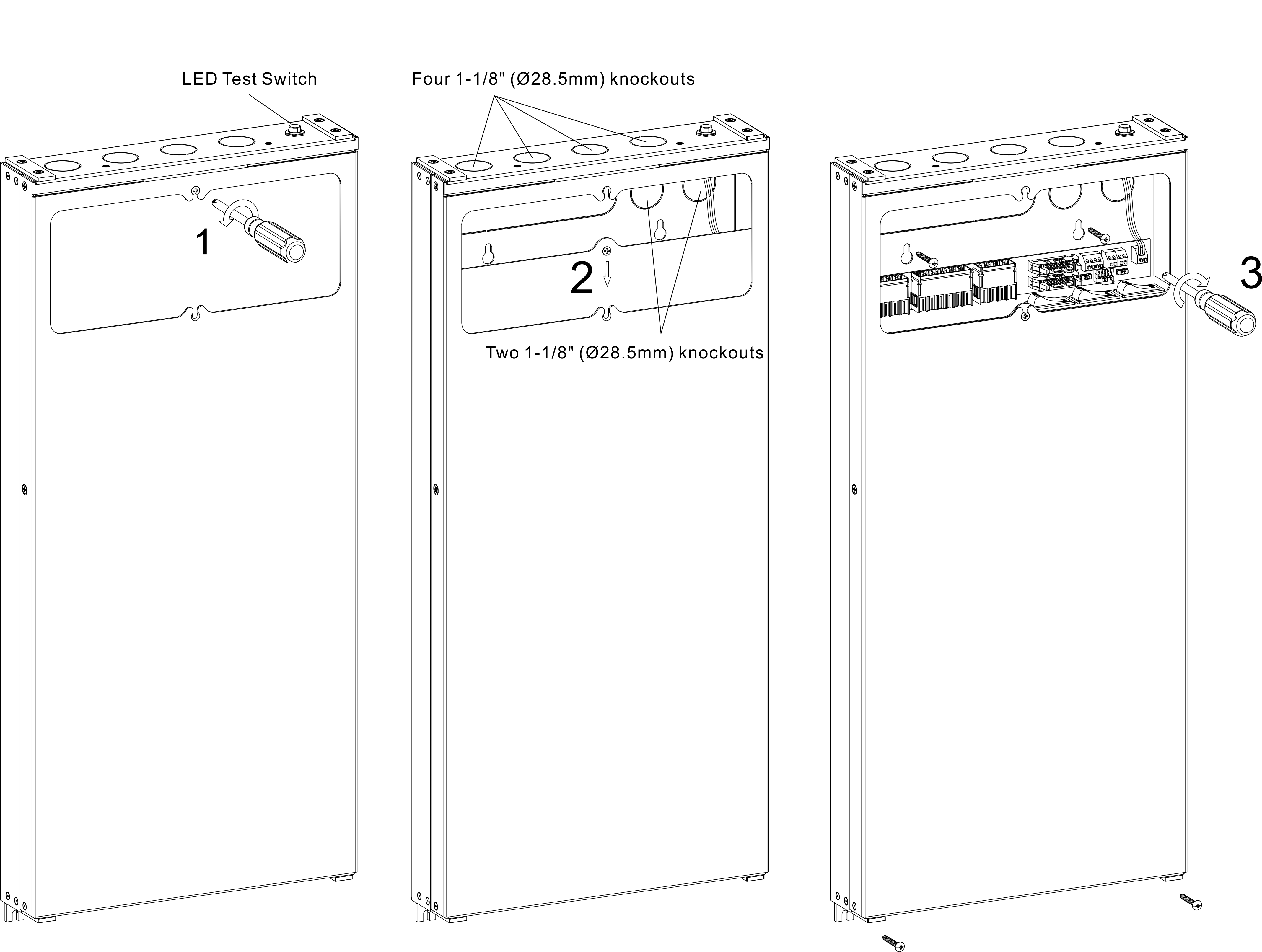

SURFACE MOUNTING

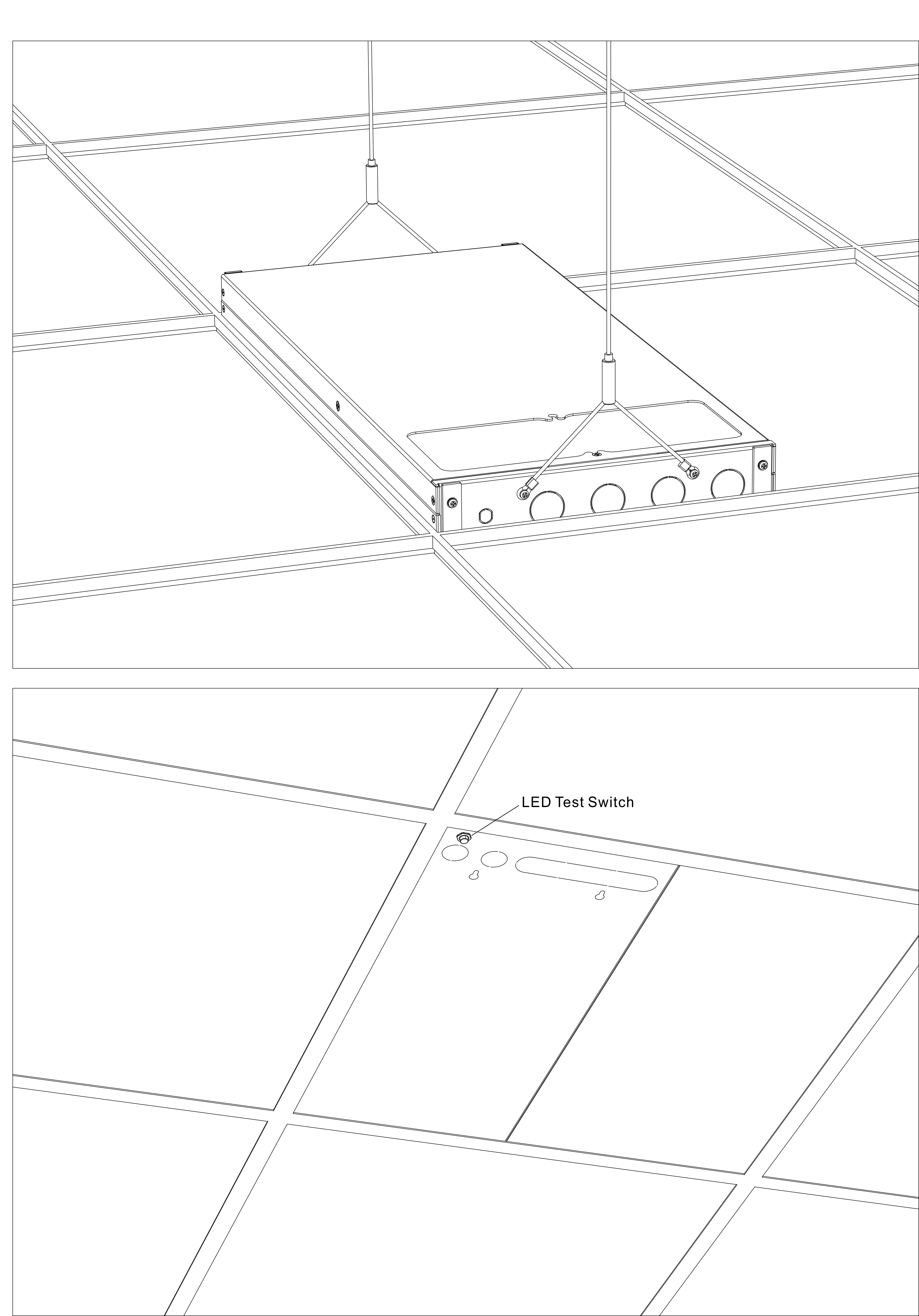

CEILING GRID MOUNTING

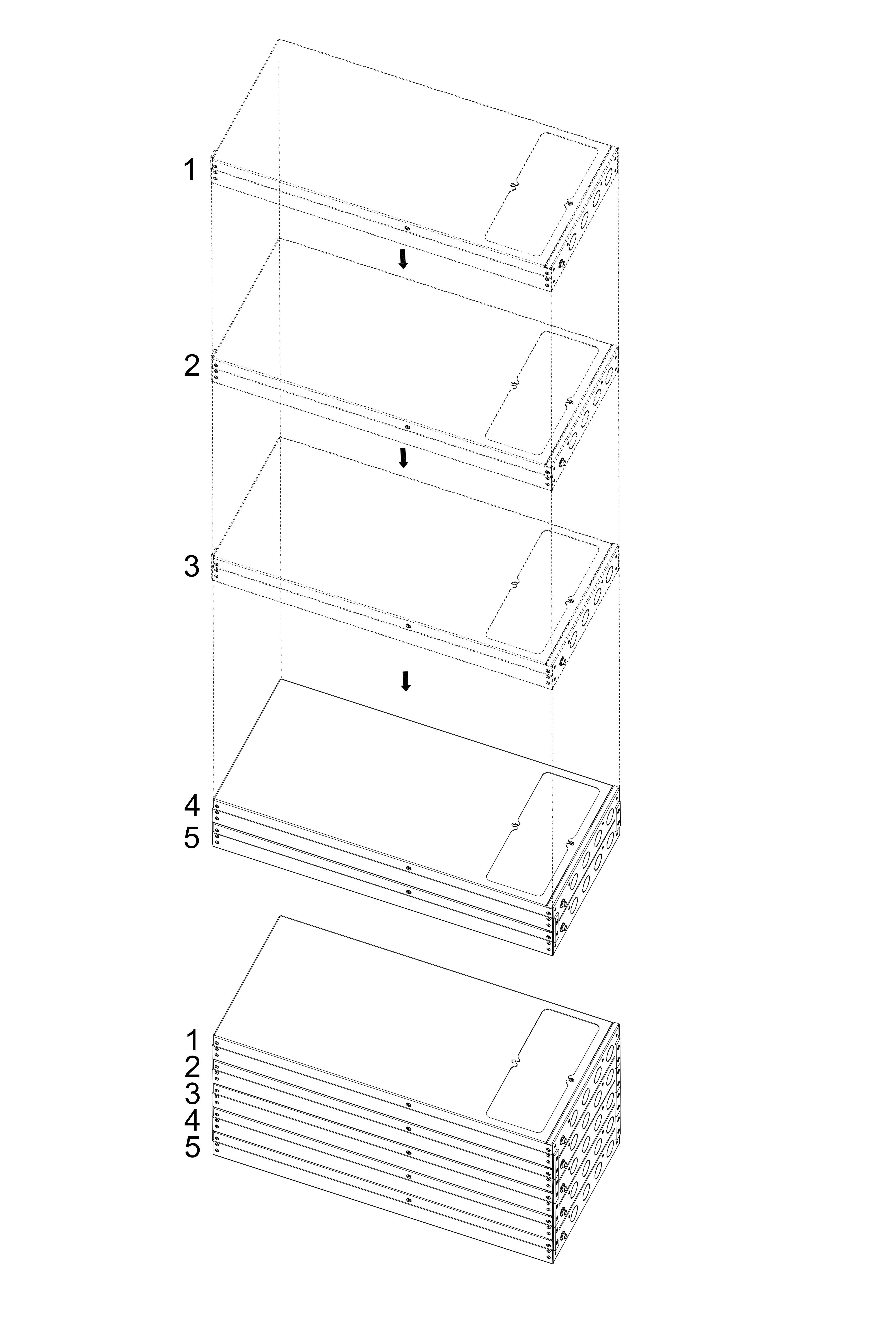

PARALLELABLE MOUNTING 1/3

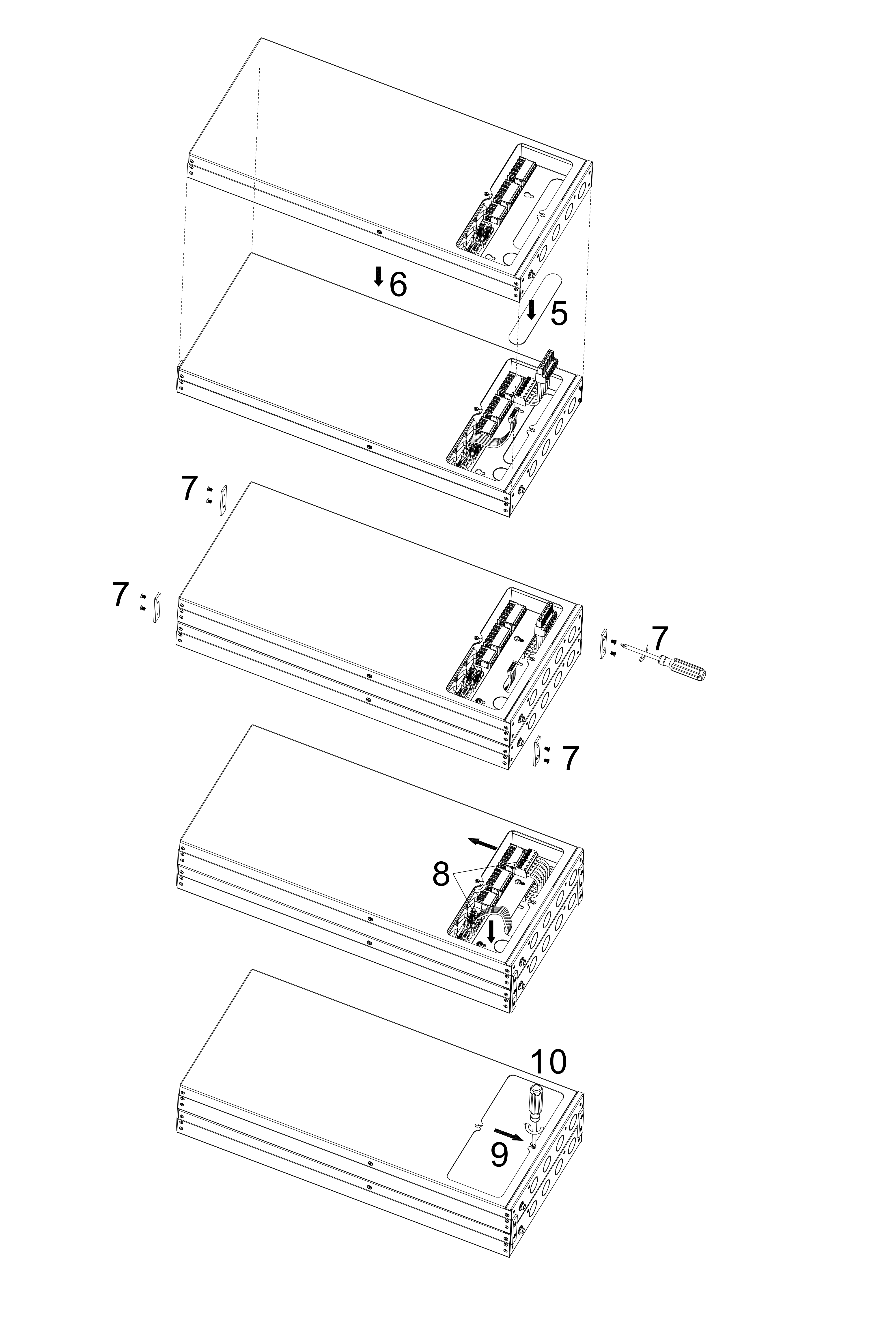

PARALLELABLE MOUNTING 2/3
PARALLELABLE MOUNTING 3/3
SINGLE 184804 FOR 0-10V DIMMABLE EMERGENCY LIGHTING SYSTEM
MAX. DIMMABLE LOAD = 2000W @ 120V; 4000W @ 277V

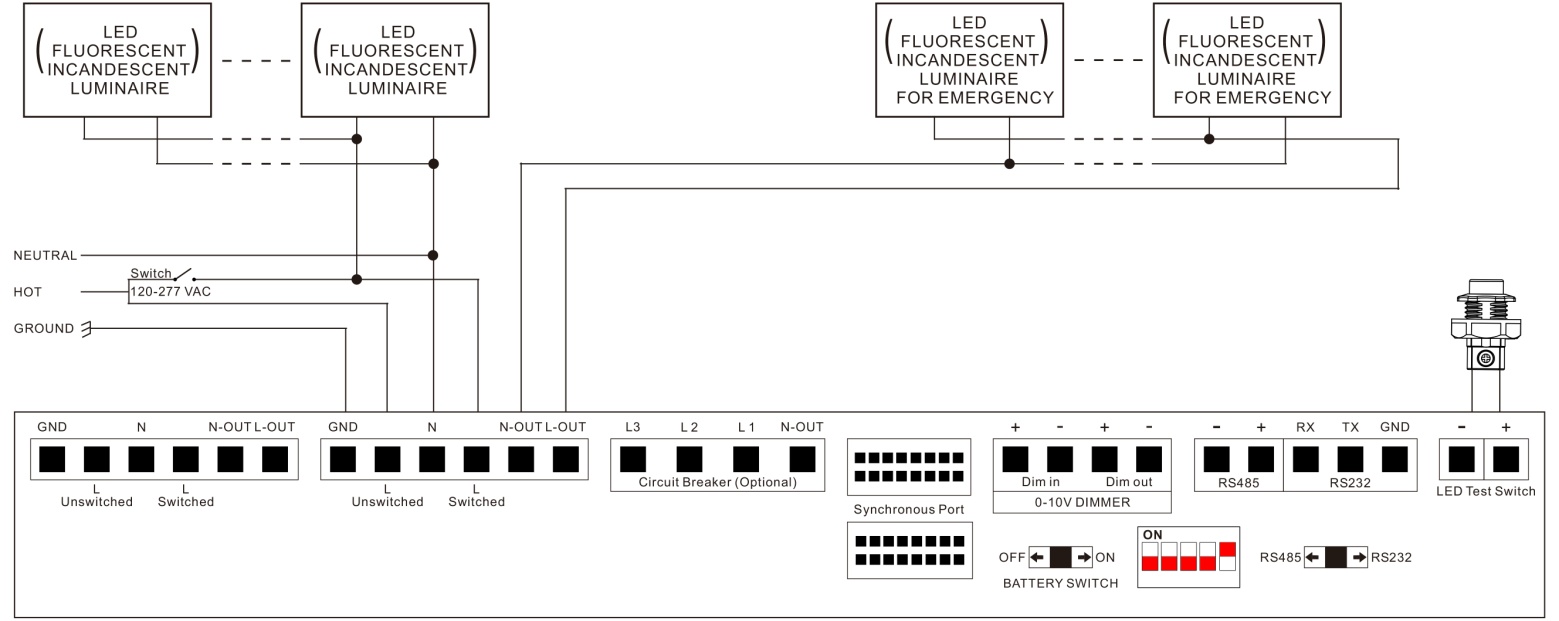

SINGLE 184804 FOR NON-DIMMABLE EMERGENCY LIGHTING SYSTEM
MAX. LOAD = 400W

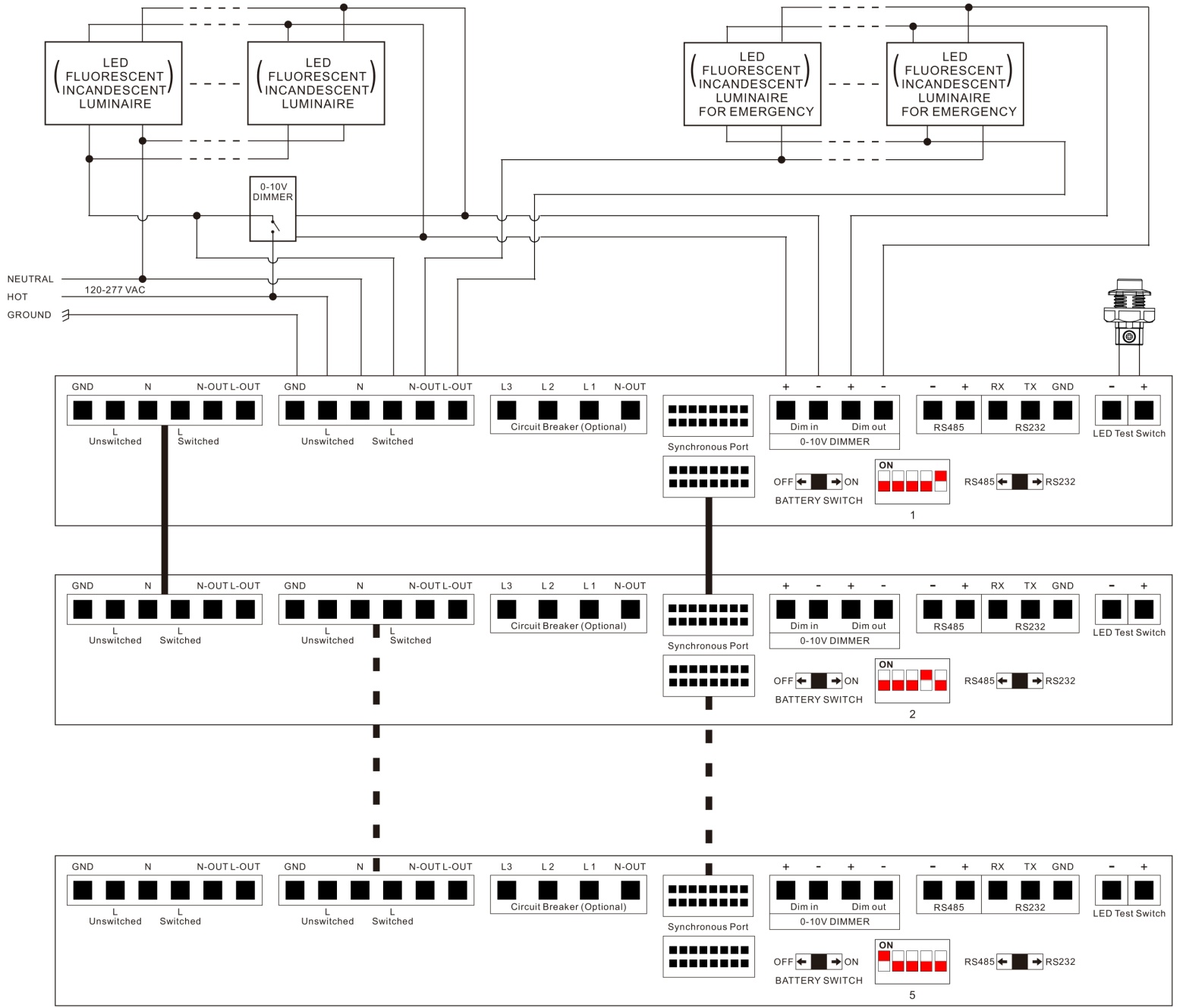

PARALLELABLE 184804 FOR 0-10V DIMMABLE EMERGENCY LIGHTING SYSTEM
MAX. DIMMABLE LOAD = 2000W @ 120V; 4000W @ 277V

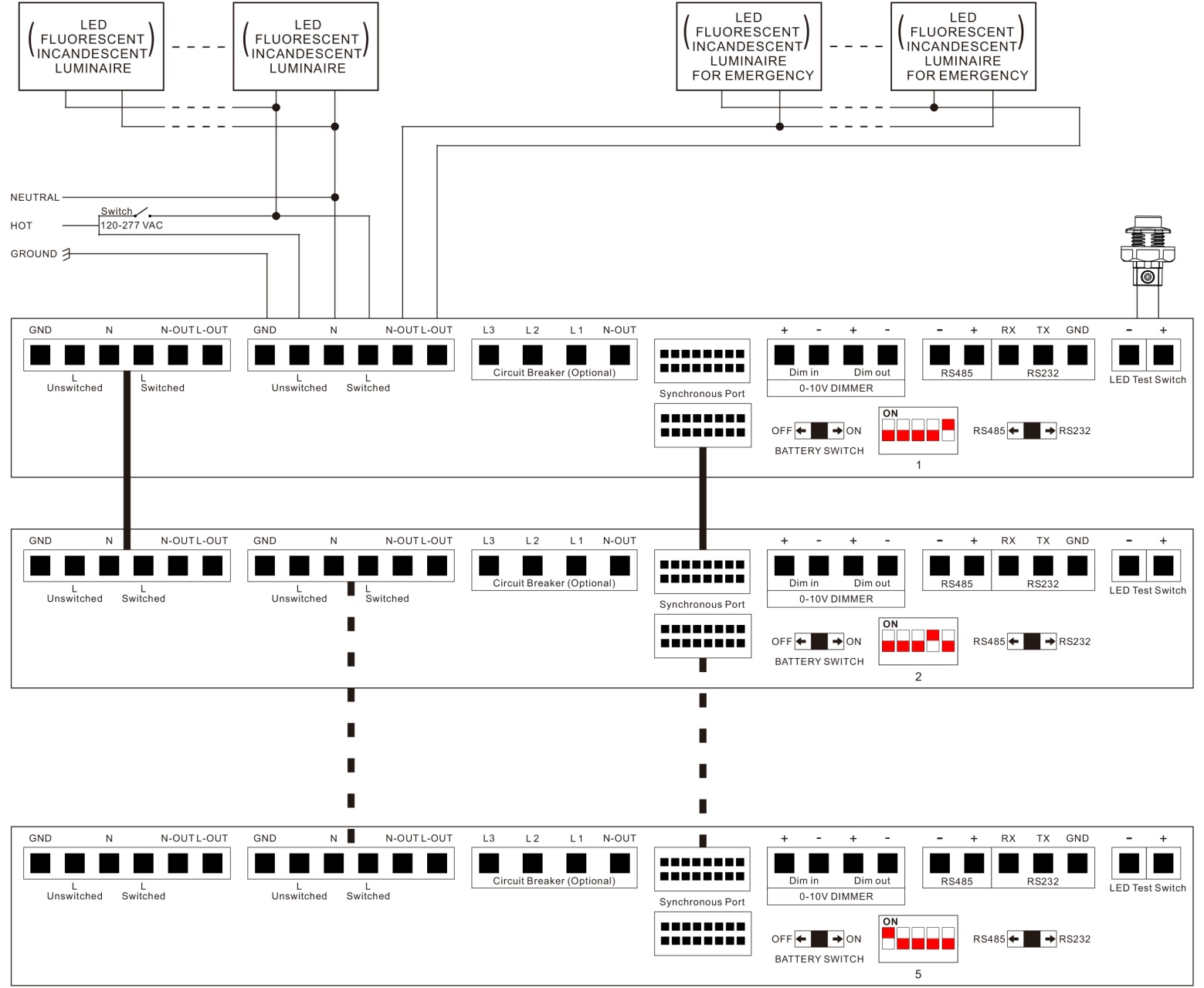

PARALLELABLE 184804 FOR NON-DIMMABLE EMERGENCY LIGHTING SYSTEM
MAX. LOAD = 800W (2×184804)
=1200W (3×184804)
=1600W (4×184804)
=2000W (5×184804)

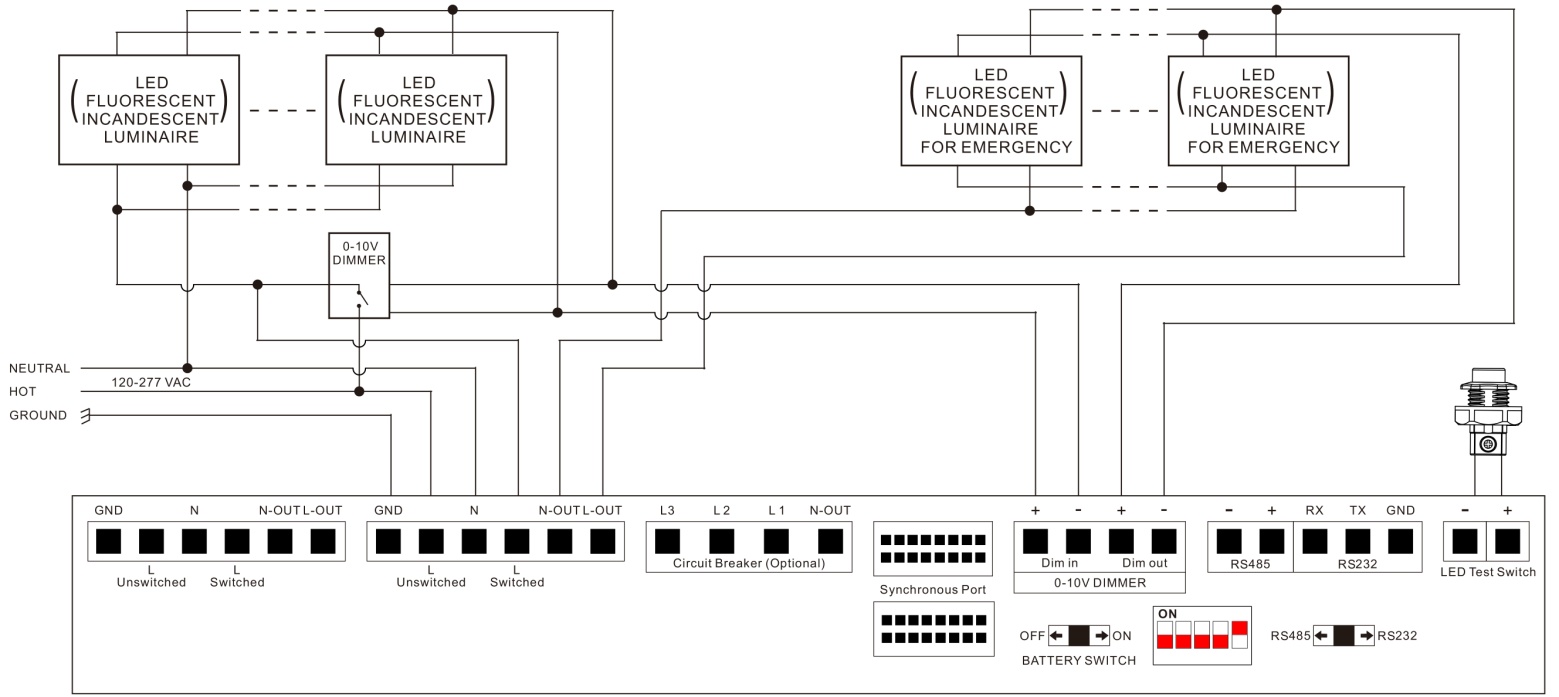

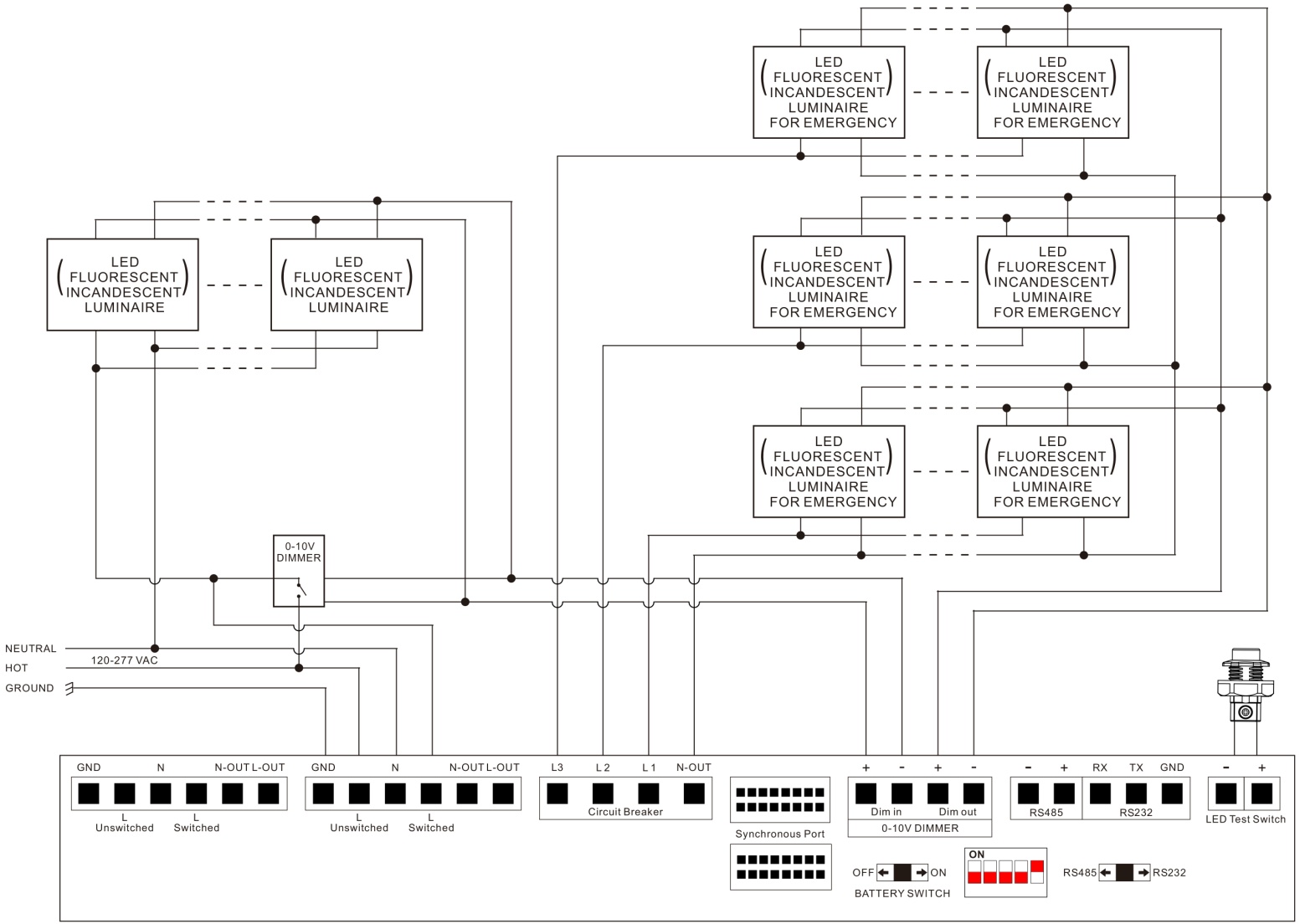

SINGLE 184804 FOR 0-10V DIMMABLE EMERGENCY LIGHTING SYSTEM (WITH 1,2 OR 3 CIRCUIT BREAKERS)
MAX. DIMMABLE LOAD = 2000W @ 120V
4000W @ 277V

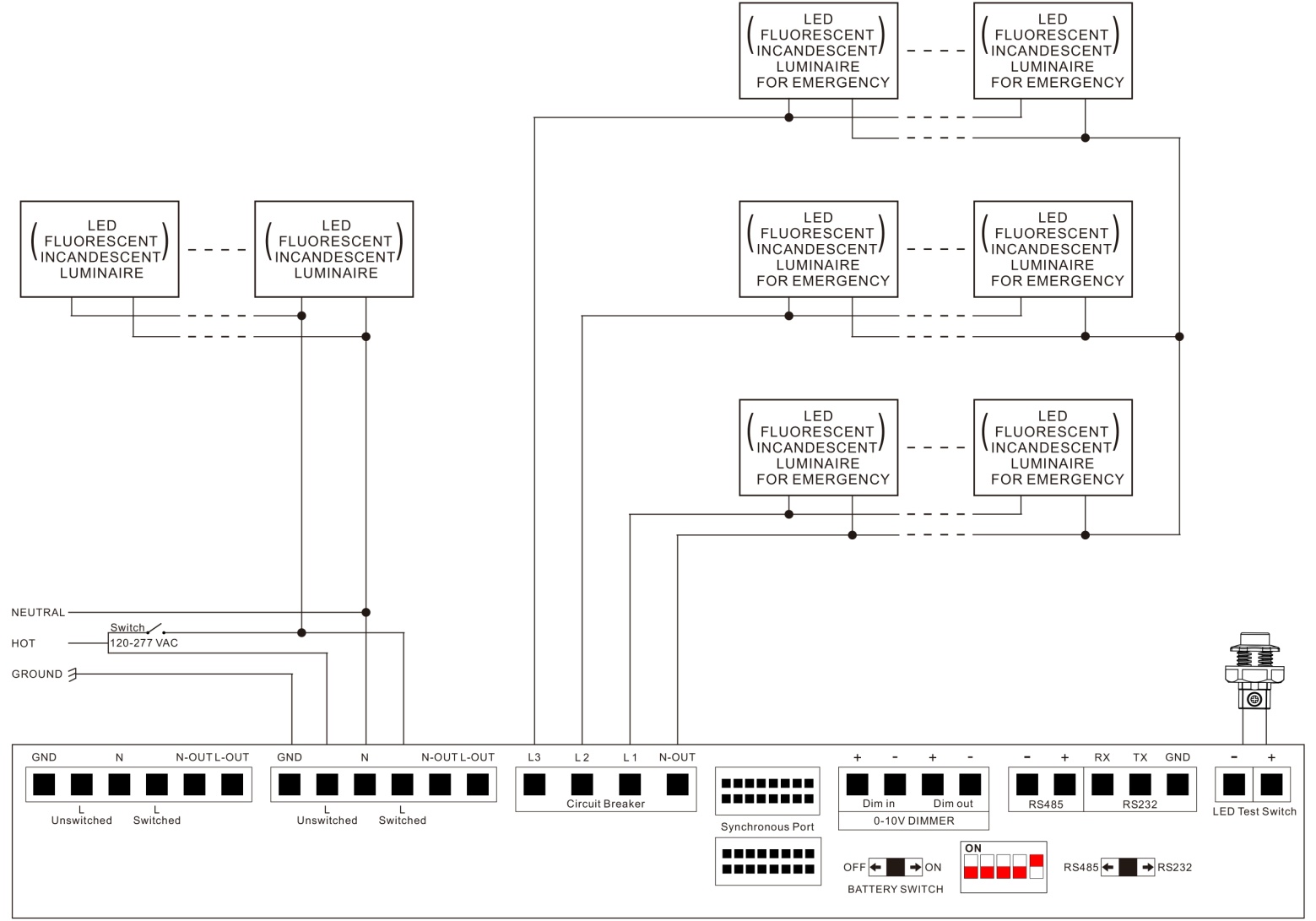

SINGLE 184804 FOR NON-DIMMABLE EMERGENCY LIGHTING SYSTEM (WITH 1,2 OR 3 CIRCUIT BREAKERS)
MAX. LOAD = 400W

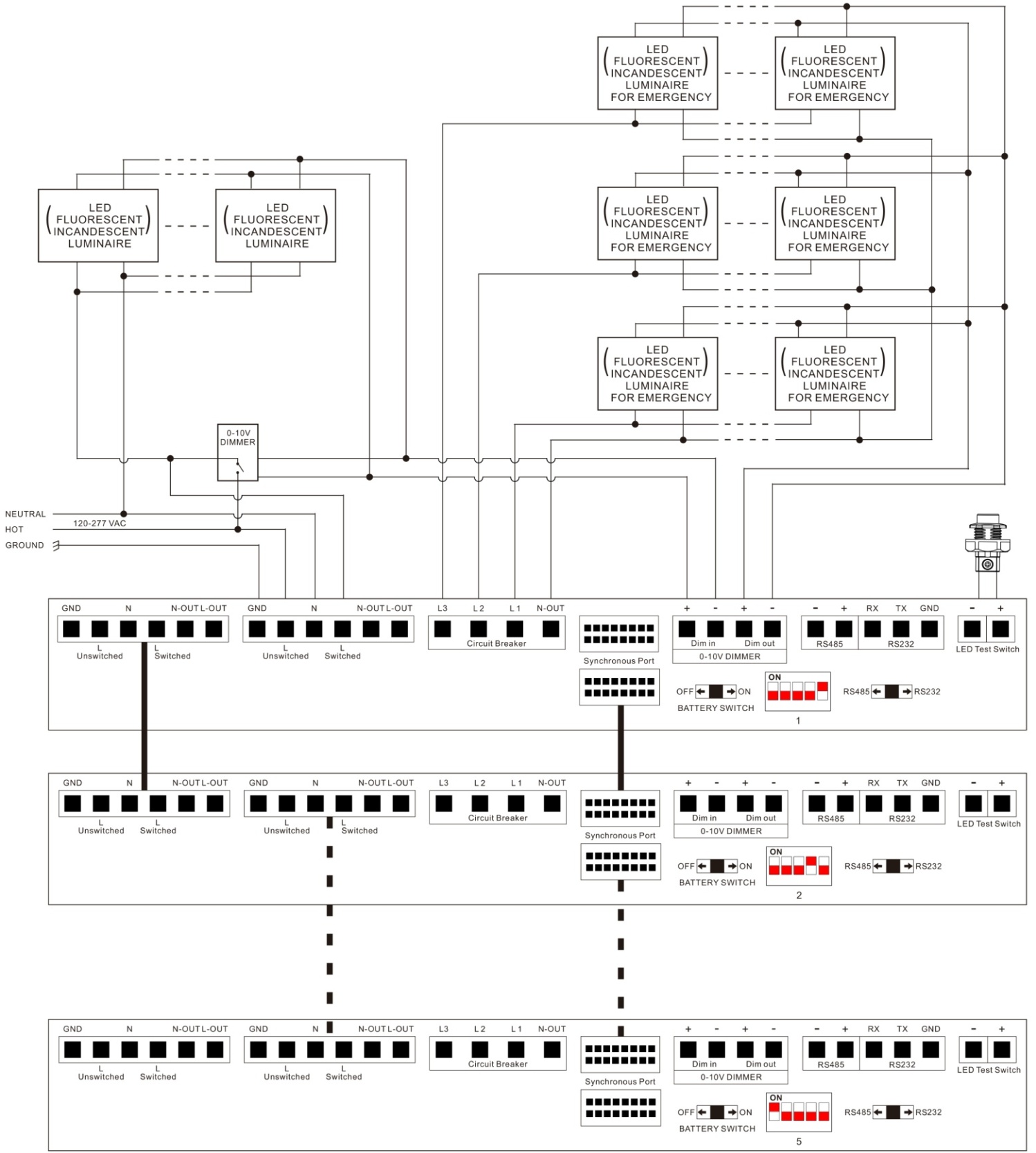

PARALLELABLE 184804 FOR 0-10V DIMMABLE EMERGENCY LIGHTING SYSTEM (WITH 1,2 OR 3 CIRCUIT BREAKERS)
MAX. DIMMABLE LOAD = 2000W @ 120V
4000W @ 277V

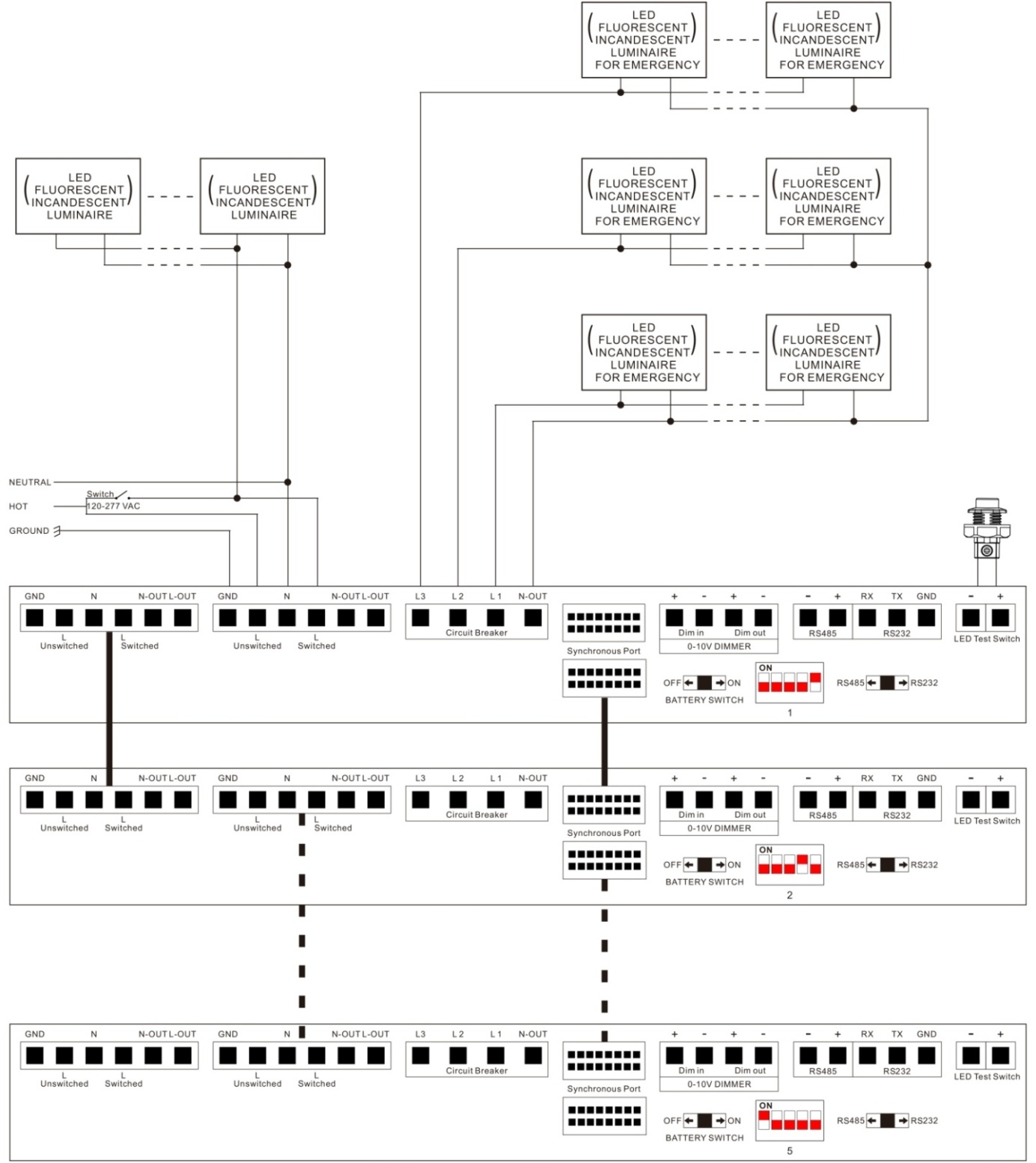

PARALLELABLE 184804 FOR NON-DIMMABLE EMERGENCY LIGHTING SYSTEM (WITH 1,2 OR 3 CIRCUIT BREAKERS)
MAX. LOAD = 800W (2×184804)
=1200W (3×184804)
=1600W (4×184804)
=2000W (5×184804)
