LED EMERGENCY DRIVER 18440X-UFO

57 views

Short Description:

1. Fast wiring and installation without opening the housing of the luminaire or the emergency driver
2. Auto dimming (0-10V) of connected load up to 10 times of emergency power
  • asd (1)

Features

CHARACTERISTICS

DIMENSIONS

WIRING DIAGRAM

WIRING & INSTALLATION

OPERATION/TESTING/MAINTENANCE

Product Tags

1. Fast wiring and installation without opening the housing of the luminaire or the emergency driver

2. Auto dimming (0-10V) of connected load up to 10 times of emergency power

3. High voltage DC output

4. Constant emergency power output

5. Emergency output is convertible between 90 and 180 minutes

6. Auto Test

7. Extremely slim aluminium housing and light in weight, built-in battery

8. IP67 rating, suitable for outdoor and wet applications


  • Previous:
  • Next:

  • Type

    184401-UFO-LVD

    184402-UFO-LVD

    184403-UFO-LVD

    Lamp type

    LED High-bay or UFO luminaire

    Rated voltage

    120-277VAC 50/60Hz

    Output voltage

    170VDC

    Rated current

    0.09A

    0.1A

    0.14A

    Rated power

    8.3W

    10W

    13.5W

    Power Factor

    >0.8@120V

    Max. Output power

    20W

    40W

    60W

    Max. power of

    0-10V dimming load

    200W

    400W

    600W

    The luminaire’s minimum dimming power should be less than or equal to the Max. Output power of LED emergency driver.

    Battery

    Li-ion

    Charging time

    24 Hours

    Discharge

    90 Minutes at full output power (or 180 minutes at half of output power)

    Charging current

    750mA

    Life time of module

    5 Years

    Charging cycles

    >1000

    Operation temperature

    0-50°C(32°F-122°F)

    Efficiency

    85%

    Abnormal protection

    Over load, over current, inrush, over temperature, charging and discharging, open circuit , short circuit protection with auto reset

    Wire

    18-14AWG/0.75-2.5mm2

    EMC/FCC/IC standard

    EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005

    Safety standard

    EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141

    Meas. mm [inch]

    L483 [19.02] x W96 [3.78] x 38 [1.5]mm

    L553 [22.77] x W96 [3.78] x 38 [1.5]mm

    L623 [24.53] x W96 [3.78] x 38 [1.5]mm

    Purchase No. description

    18440X-UFO     - YYY                                    - ZZZ

    20W or below     LVD: Input 120-277VAC Dimmable           Code No. + emergency power

    40W or below     HVD: input 277-480VAC Dimmable

    60W or below     MVD: Input 220-240VAC Dimmable

    Type

    184401-UFO-MVD

    184402-UFO-MVD

    184403-UFO-MVD

    Lamp type

    LED High-bay or UFO luminaire

    Rated voltage

    220-240VAC 50/60Hz

    Output voltage

    280VDC

    Rated current

    0.04A

    0.04A

    0.04A

    Rated power

    6.6W

    6.6W

    6.6W

    Power Factor

    >0.6@277V

    Max. Output power

    20W

    40W

    60W

    Max. power of

    0-10V dimming load

    200W

    400W

    600W

    The luminaire’s minimum dimming power should be less than or equal to the Max. Output power of LED emergency driver.

    Battery

    Li-ion

    Charging time

    24 Hours

    Discharge

    90 Minutes at full output power (or 180 minutes at half of output power)

    Charging current

    750mA

    Life time of module

    5 Years

    Charging cycles

    >1000

    Operation temperature

    0-50°C(32°F-122°F)

    Efficiency

    85%

    Abnormal protection

    Over load, over current, inrush, over temperature, charging and discharging, open circuit , short circuit protection with auto reset

    Wire

    18-14AWG/0.75-2.5mm2

    EMC/FCC/IC standard

    EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,

    Safety standard

    EN 61347-1, EN 61347-2-7

    Meas. mm [inch]

    L483 [19.02] x W96 [3.78] x 38 [1.5]mm

    L553 [22.77] x W96 [3.78] x 38 [1.5]mm

    L623 [24.53] x W96 [3.78] x 38 [1.5]mm

    Type

    184401-UFO-HVD

    184402-UFO- HVD

    184403-UFO- HVD

    Lamp type

    LED High-bay or UFO luminaire

    Rated voltage

    277-480VAC 50/60Hz

    Output voltage

    400VDC

    Rated current

    0.04A

    0.04A

    0.04A

    Rated power

    6.6W

    6.6W

    6.6W

    Power Factor

    >0.6@277V

    Max. Output power

    20W

    40W

    60W

    Max. power of

    0-10V dimming load

    200W

    400W

    600W

    The luminaire’s minimum dimming power should be less than or equal to the Max. Output power of LED emergency driver.

    Battery

    Li-ion

    Charging time

    24 Hours

    Discharge

    90 Minutes at full output power (or 180 minutes at half of output power)

    Charging current

    750mA

    Life time of module

    5 Years

    Charging cycles

    >1000

    Operation temperature

    0-50°C(32°F-122°F)

    Efficiency

    85%

    Abnormal protection

    Over load, over current, inrush, over temperature, charging and discharging, open circuit , short circuit protection with auto reset

    Wire

    18-14AWG/0.75-2.5mm2

    EMC/FCC/IC standard

    EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005

    Safety standard

    EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141

    Meas. mm [inch]

    L483 [19.02] x W96 [3.78] x 38 [1.5]mm

    L553 [22.77] x W96 [3.78] x 38 [1.5]mm

    L623 [24.53] x W96 [3.78] x 38 [1.5]mm

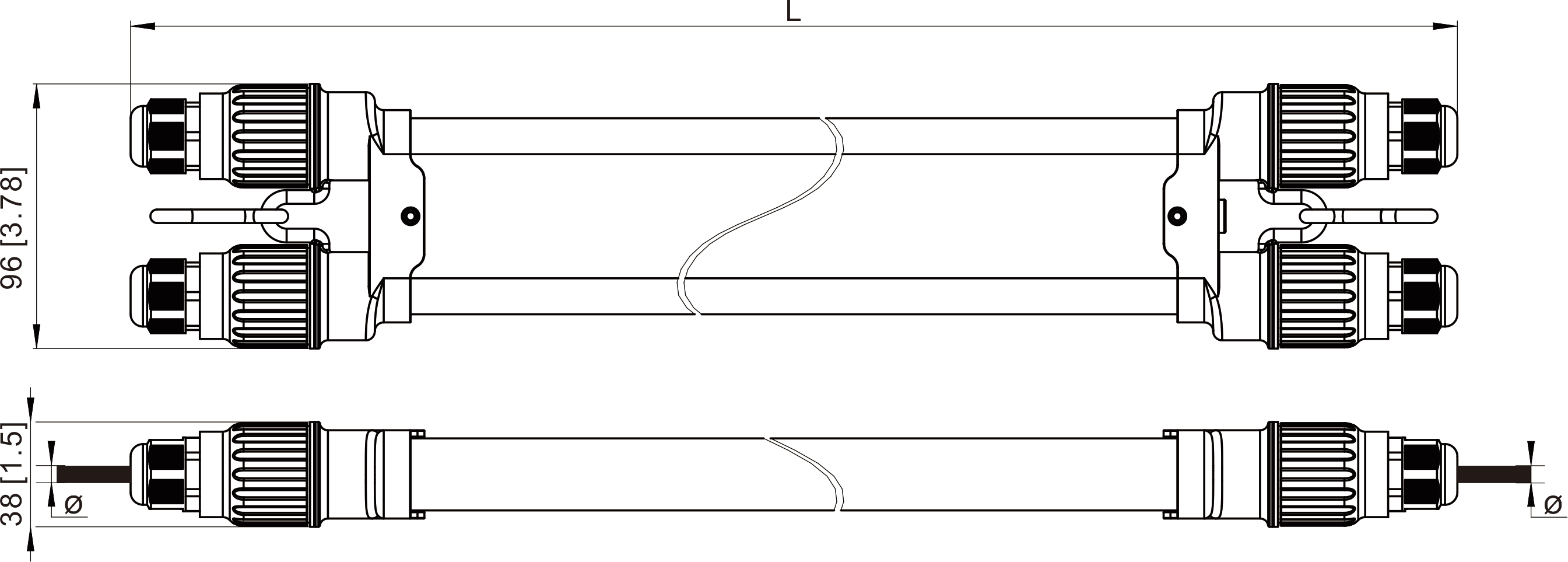

    18440X-UFO

    asd (3)

    Item No.

    L mm [inch]

    W mm [inch]

    H mm [inch]

    Φmm [inch]

    184401-UFO

    483 [19.02]

    96 [3.78]

    38 [1.5]

    4-core cable: 6-12.5 [0.24-0.49]

    3 or 2-Core cable : 5-9 [0.20-0.35]

    184402-UFO

    553 [22.77]

    96 [3.78]

    38 [1.5]

    184403-UFO

    623 [24.53]

    96 [3.78]

    38 [1.5]

    Dimension unit: mm [inch]  Tolerance: ±1 [0.04]

    The UFO luminaire must have a 0-10V dimmable driver when its power is bigger than the max. Output power of the UFO emergency Driver.

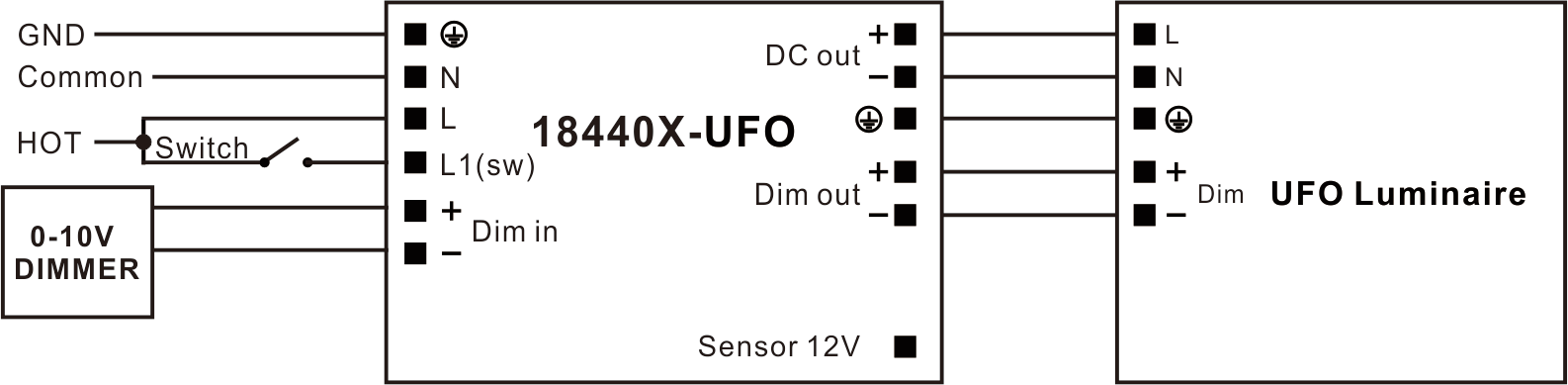

    For 0-10V Dimmable UFO

    asd (4)

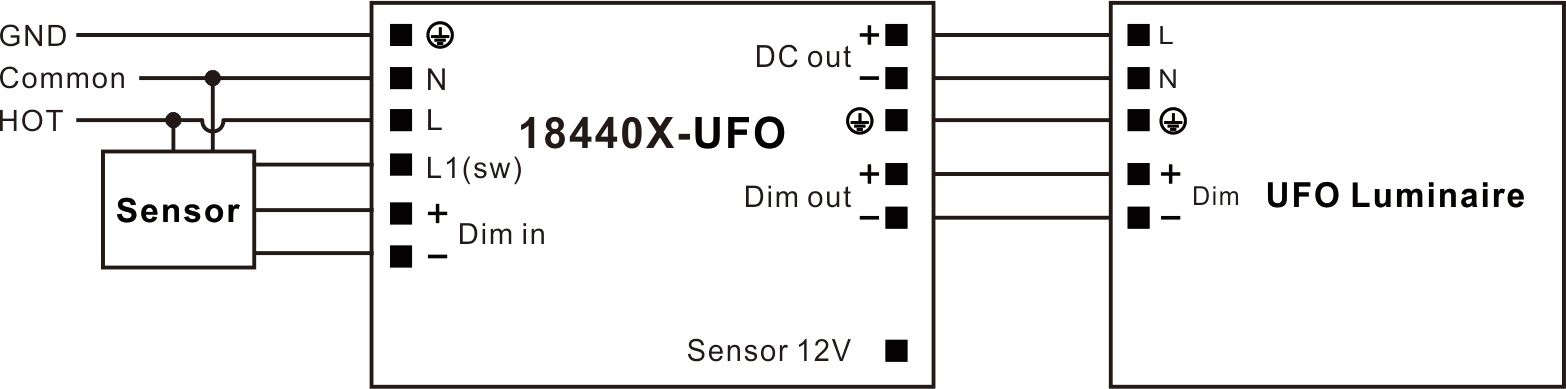

    For 0-10V Dimmable UFO with AC Sensor

    asd (5)

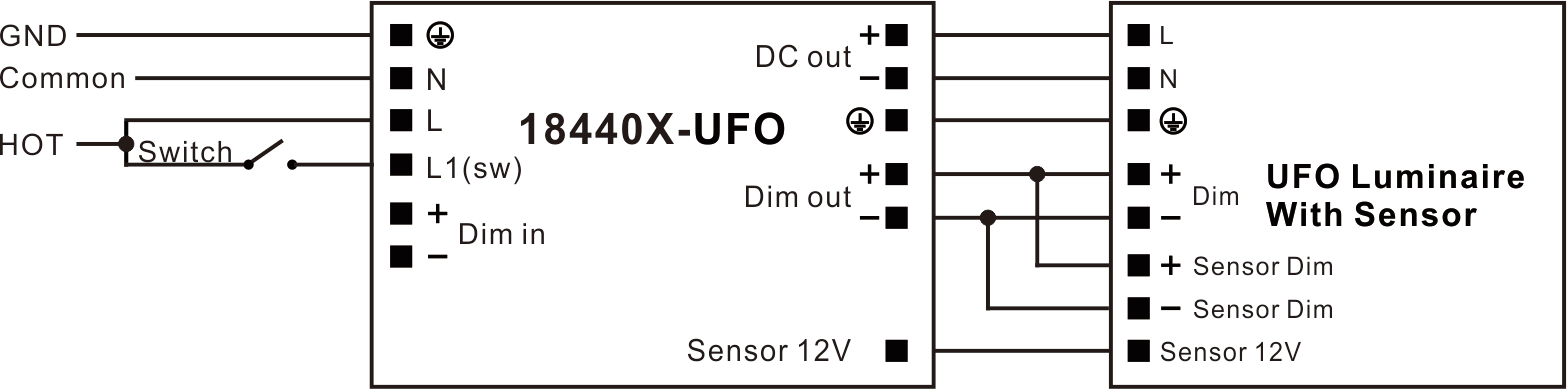

    For 0-10V Dimmable UFO with DC Sensor

    asd (6)

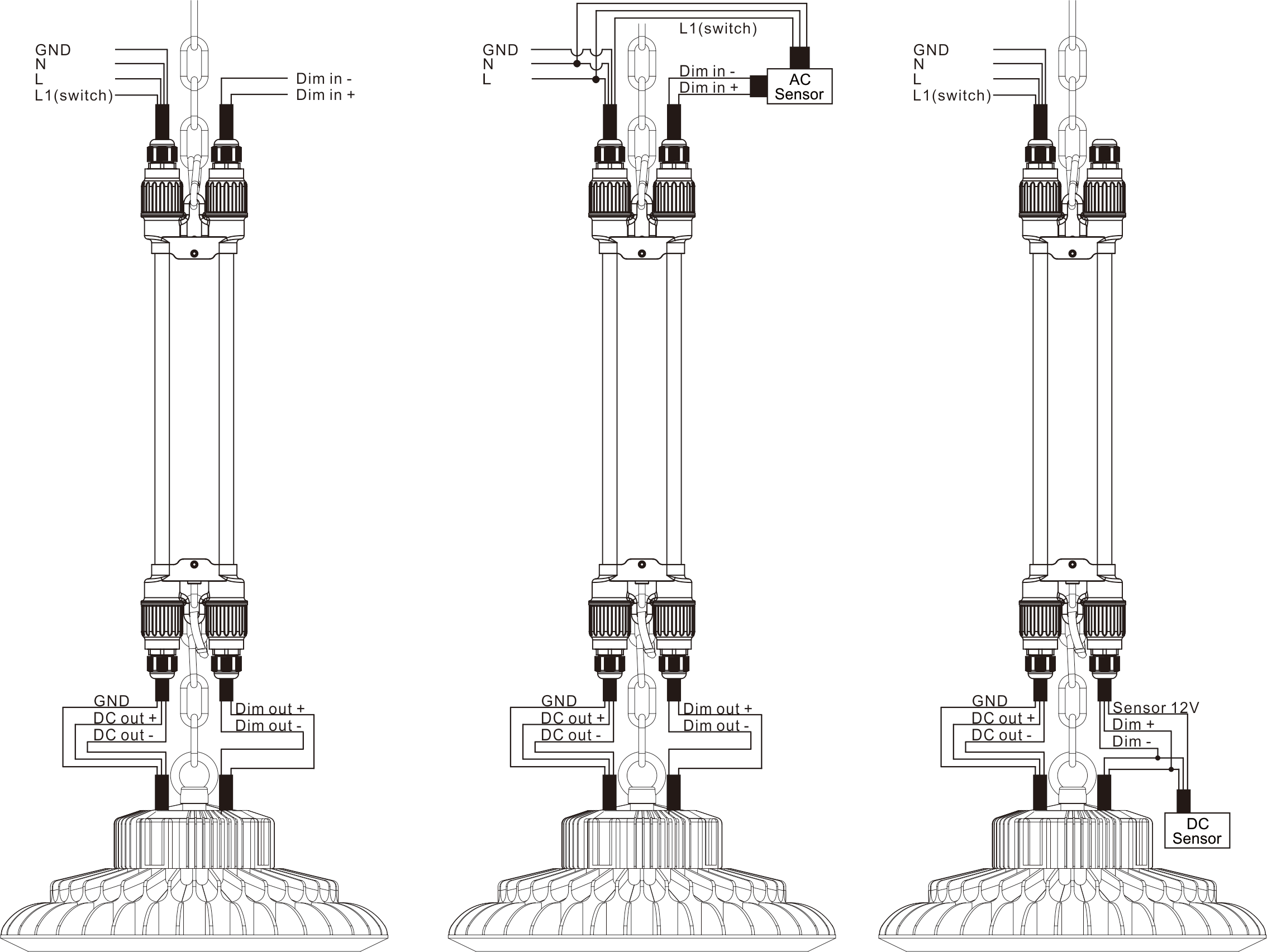

    For 0-10V Dimmable UFO     For 0-10V Dimmable UFO with AC Sensor  For 0-10V Dimmable UFO with DC Sensor

    asd (7)

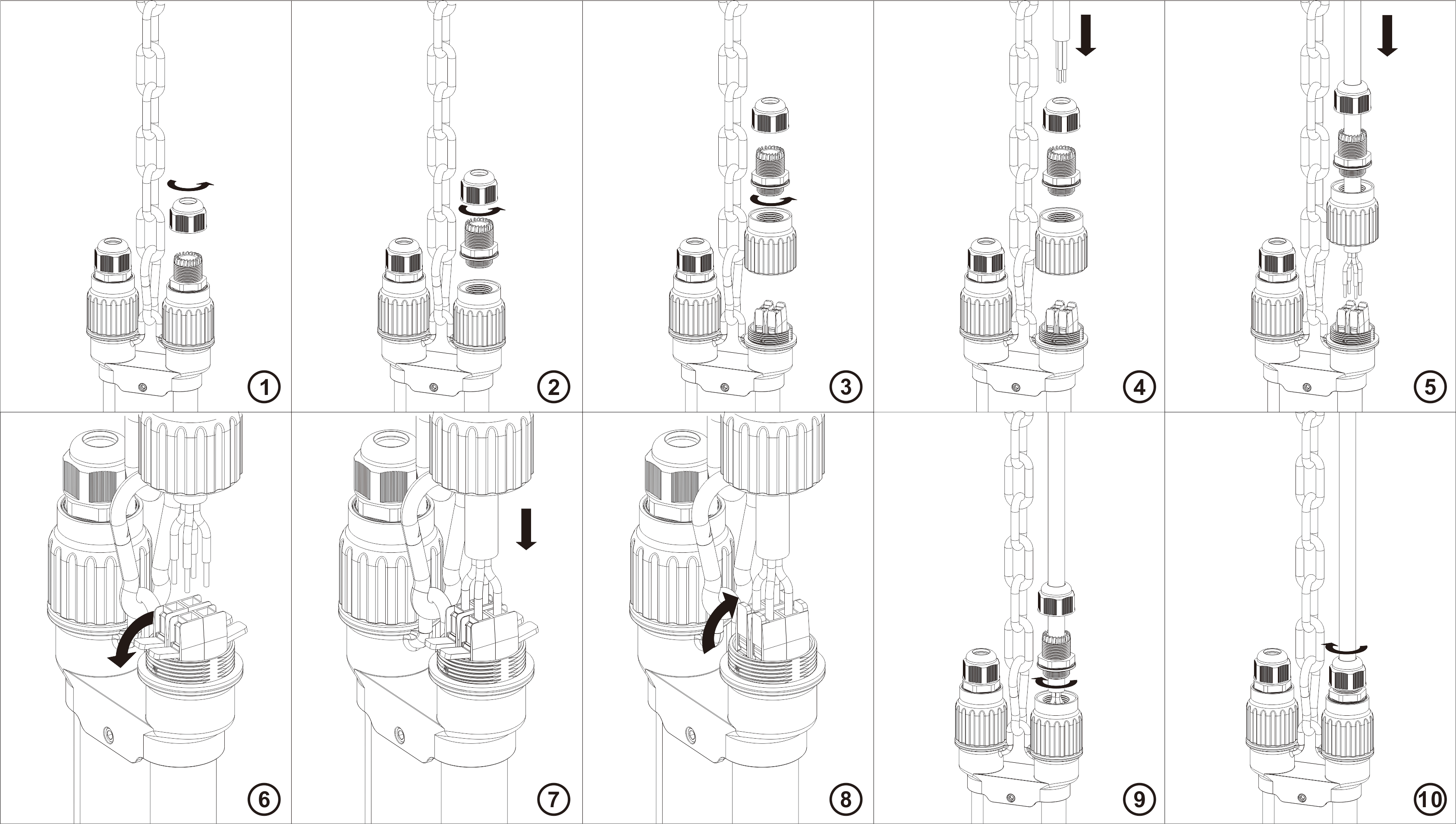

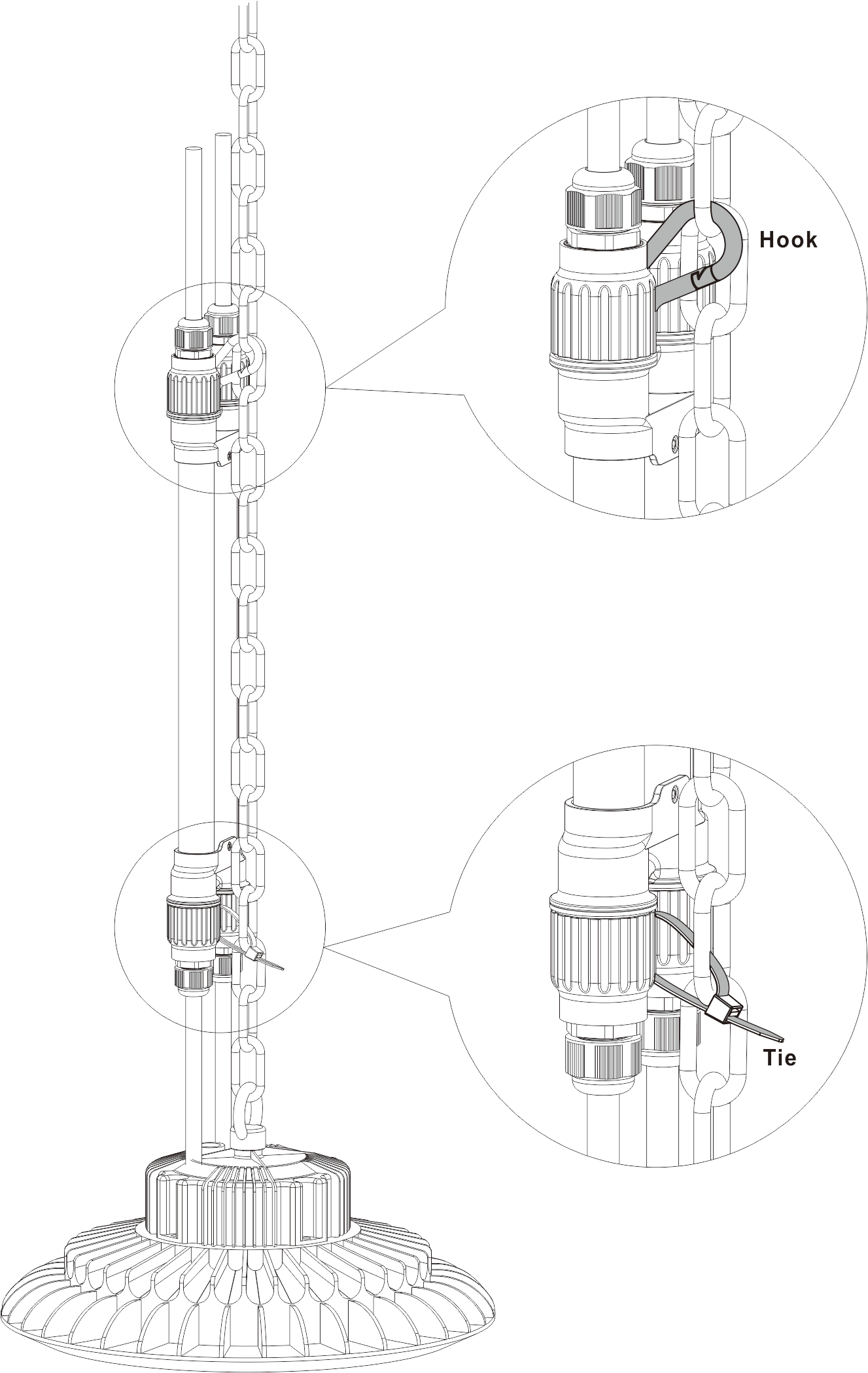

    Use UL approved power cable with the outer diameter from 6mm to 12.5mm (for 4-core), 5mm to 9mm (for 3 or 2-core). Use wire of 14-18AWG for electric connection. After connection, the conductors shall not be exposed.

    asd (8)

    asd (9)

    OPERATION

    When AC power is applied, the LED test switch is illuminated, indicating that the batteries are being charged. When AC power fails, the 18440X-UFO automatically switches to emergency power, operating the lighting load at rated emergency power. During power failure, the LED test switch will be off. When the AC power is restored, the 18440X-UFO switches the system back to normal mode of operation and resumes battery charging. The minimum emergency operation time is 90 minutes. The charging time for a full discharge is 24 hours. A short term discharge test may be conducted after the 18440X-UFO has been charging for 1 hour. Charge for 24 hours before conducting a long term discharge test.

    EMERGENCY OUTPUT CONVERSION

    The default emergency time is min. 90 minutes. In the normal mode, LTS slowly blinks - ON for 1 second and OFF

    for 1 second, while the battery is being charged; After the battery is fully charged, the LTS stays ON. By Pressing

    LTS 4 times within 3 seconds in the normal mode can halve the emergency power and extend the emergency time to 180 minutes. In this option, the LTS in the normal mode is slowly blinking: 5 seconds ON, 0.5 seconds OFF.

    When the battery is fully charged, the LTS is ON for 5 seconds and breathing for 2.5 seconds.

    TESTING AND MAINTENANCE

    The following Periodic testing is recommended to ensure the system is working correctly.

    1. Visually inspect the LED test switch (LTS) monthly. It should be illuminated when AC power is applied.

    2. Conduct a 60-second discharge test by switching off the emergency breaker every month. The LTS will be off.

    3. Conduct a 90-minute discharge test once per year. The LTS will be off during test.

    AUTO TEST

    The 18440X-UFO has an Auto Test feature which saves cost by reducing the need for manual testing.

    1. Initial Auto Test

    When the system is connected properly and powered on, the 18440X-UFO will perform an initial Auto Test. If any abnormal conditions exist, the LTS will blink quickly. Once the abnormal condition is corrected, the LTS will function correctly.

    2. Preprogrammed Scheduled Auto Test

    a) The unit will conduct the first Monthly Auto Test after 24 hours and up to 7 days after initial power on. Then monthly tests will be performed every 30 days.

    b) Annual Auto test will occur every 52 weeks after initial power on.

    - Monthly Auto Test

    The Monthly Auto Test shall be executed every 30 days, and will test;

    Normal to emergency transfer function, emergency, charging and discharging conditions are normal.

    Monthly test time is approximately 30 seconds.

    - Annual Auto Test

    Annual Auto Test will occur every 52 weeks after the initial 24 hours full charge, and will test;

    Proper initial battery voltage, 90-minute emergency operation and acceptable battery voltage at the end of the full 90-minute test.

    If the Auto Test is interrupted by a power failure, a full 90-minute Auto Test will occur again 24 hours after the power is restored. If the power failure causes the battery to fully discharge, the product will restart the Initial Auto Test and

    Preprogrammed Scheduled Auto Test.

    MANUAL TEST

    1. Press the LTS 2 times continuously within 3 seconds to force a 60-second monthly test. After the test is complete,the next (30-day) monthly test will count from this date.

    2. Press the LTS 3 times continuously within 3 seconds to force a 90-minute annual test. After the test is  completed, the next (52-week) annual test will count from this date.

    3. During any manual test, press and hold the LTS for greater than 3 seconds to terminate a manual test. The Preprogrammed Scheduled Auto Test time will not change.

    LED TEST SWITCH CONDITIONS

    LTS Slow Blinking: Normal Charging

    LTS On: Battery Fully Charged – Normal Condition

    LTS Off: Power Failure

    LTS Gradual Change: In Testing Mode

    LTS Quickly Blinking: Abnormal Condition – Corrective Action Required

    SAFETY INSTRUCTIONS

    1. To prevent electric shock, switch off the mains power supply until installation is complete and AC input power is supplied to this product.

    2. This product requires an un-switched AC power supply of 120-277V, 50/60Hz.

    3. Make sure all connections are in accordance with the National or Canadian Electrical code and any local regulations.

    4. To reduce the risk of electrical shock, disconnect both normal power, emergency power supplies and unit connector of this product before servicing.

    5. For emergency operation of LED, incandescent, fluorescent fixtures and screw-base lamps.

    6. Use this product in 0°C minimum, 50°C maximum ambient temperatures (Ta). It can provide minimum 90 minutes illumination under the emergency mode.

    7. This product is suitable for use in dry or damp locations. Do not use outdoors. Do not mount it near gas, heaters, air outlets or other hazardous locations.

    8. Do not attempt to service the batteries. A sealed, non-maintenance battery is used that is not field replaceable. Contact the manufacturer for information or service.

    9. As this product contains batteries, please be sure to store it in an indoor environment of -20°C ~30°C. It must be fully charged and discharged every 6 months from the date of purchase until it is officially put into use, then recharged 30-50% and stored for another 6 months, and so on. If the battery is not used for more than 6 months, it may cause excessive self-discharge of the battery, and the resulting reduction of battery capacity is irreversible. For products with separate battery and emergency module, please disconnect the connection between battery and module for storage. Due to its chemical properties, it is a normal situation for the battery capacity to decline naturally during use. Users should take this into account when choosing products.

    10. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition and void warranty.

    11. Do not use this product for other than intended use.

    12. Installation and service should be performed by qualified service personnel.

    13. This product should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.

    14. Ensure product compatibility before final installation. Make sure the polarity is correct when connecting the batteries. Wiring should be strictly in accordance with the wiring diagram, wiring errors will damage the product. A case of safety accident or product failure caused by users’ illegal operation does not belong to the scope of customer complaint acceptance, compensation or product quality assurance.
