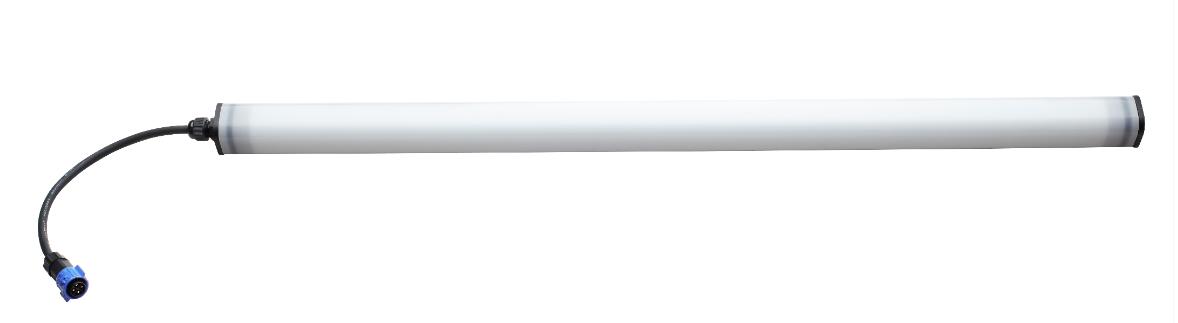

IP67 LED Light Kit IP67 LED SUPER PROOF
Short Description:
CE/UL IP67 LED Super Proof Wind Power Light 30W 60W, IP67 LED Waterproof light, IP67 LED Emergency Light, LED Emergency Light Kit, IK10 Watertight LED light, Emergency light kit.
Small size, high lumen output, easy for mounting in limited space
2mm thick PC milky protective lens, aluminum tray inside, high strength end cap design with multi-layer waterproof structure
With high efficient LED driver and high CRI LED light source, long life time.
IK10 impact resistant
IP67 protection against water immersion
| Spec.Item. | LL16C30 | LL16C60 |
| Description | Light, LED, Standard，SW | Light, LED, Standard，SW |
| Input voltage | 120-277 VAC | 120-277 VAC |
| Max. input voltage | 100-300 VAC | 100-300 VAC |
| Frequency | 50-60Hz | 50-60Hz |
| Max. input power | 30W | 60W |
| Max. input current | 0.3A | 0.6A |
| Lamp type | LED SMD | LED SMD |
| Color temperature | 5000K | 5000K |
| Lumen output | 2,300LM | 4,500LM |
| Operation temperature | -30°C to 50°C | -30°C to 50°C |
| Survival temperature | -40°C to 60°C | -40°C to 60°C |
| Life time | 50,000 Hours | 50,000 Hours |

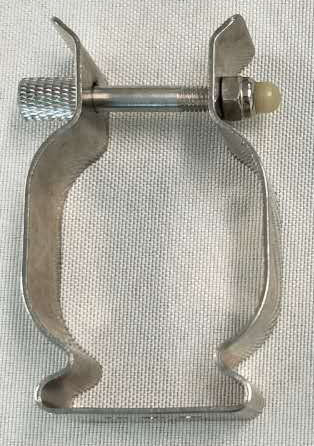

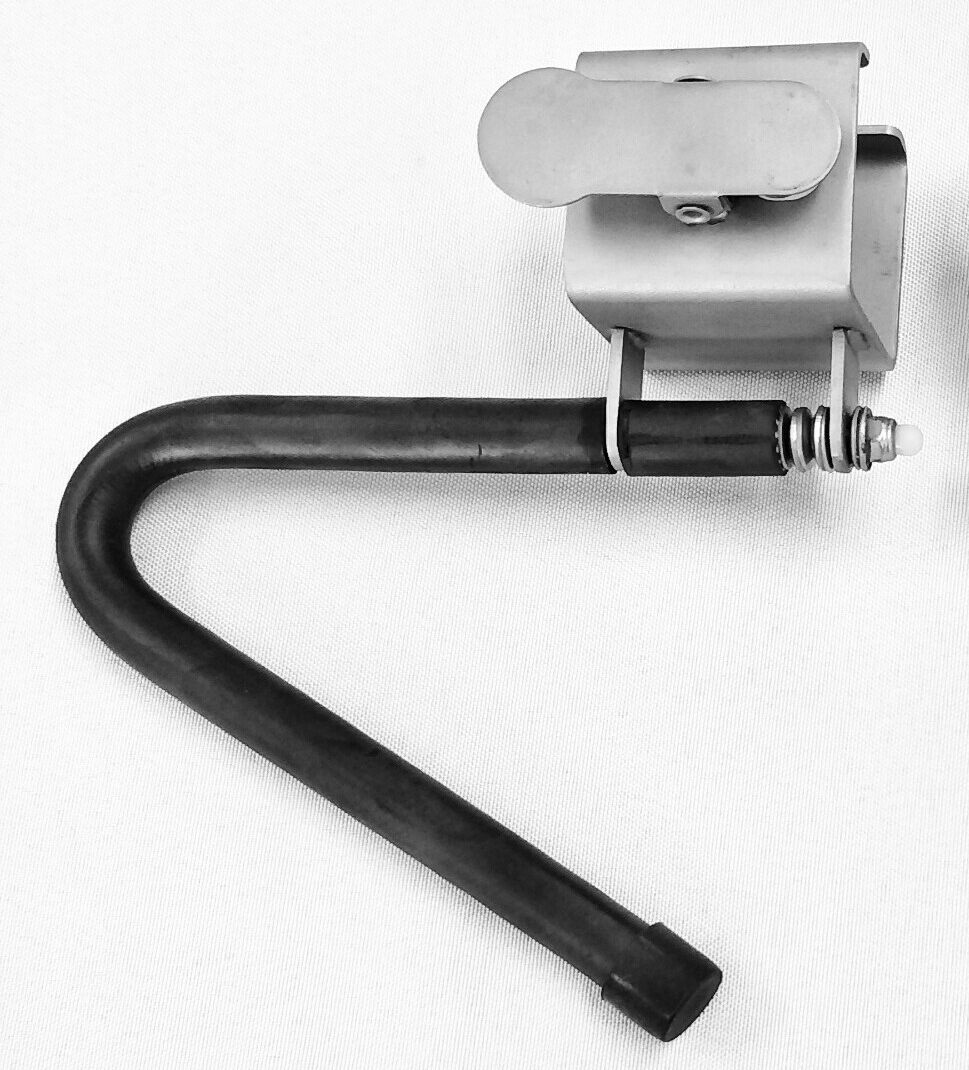

- Ω Springs clip
without magnet

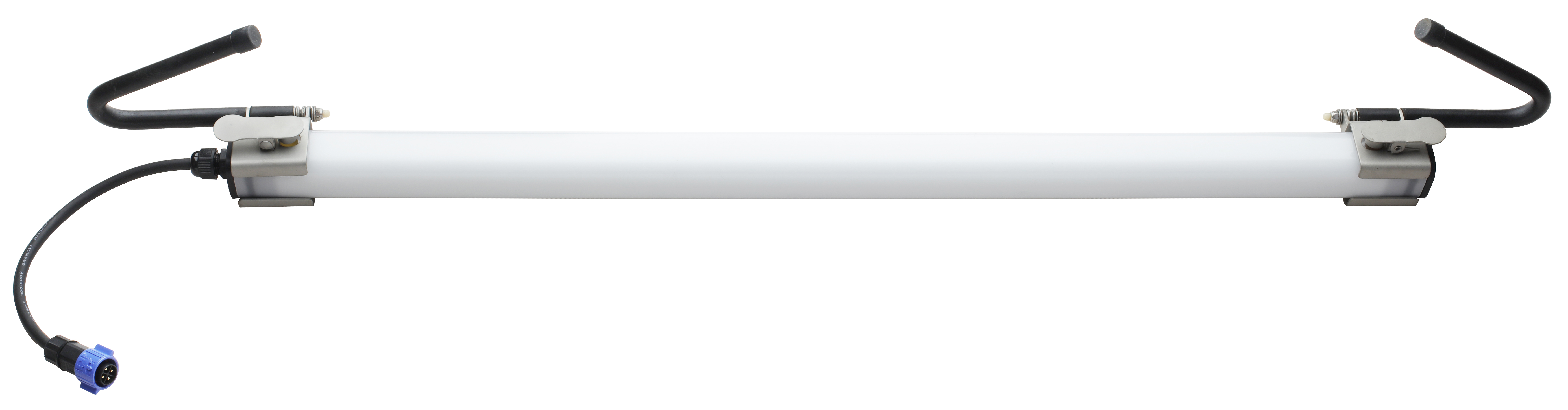

with magnet

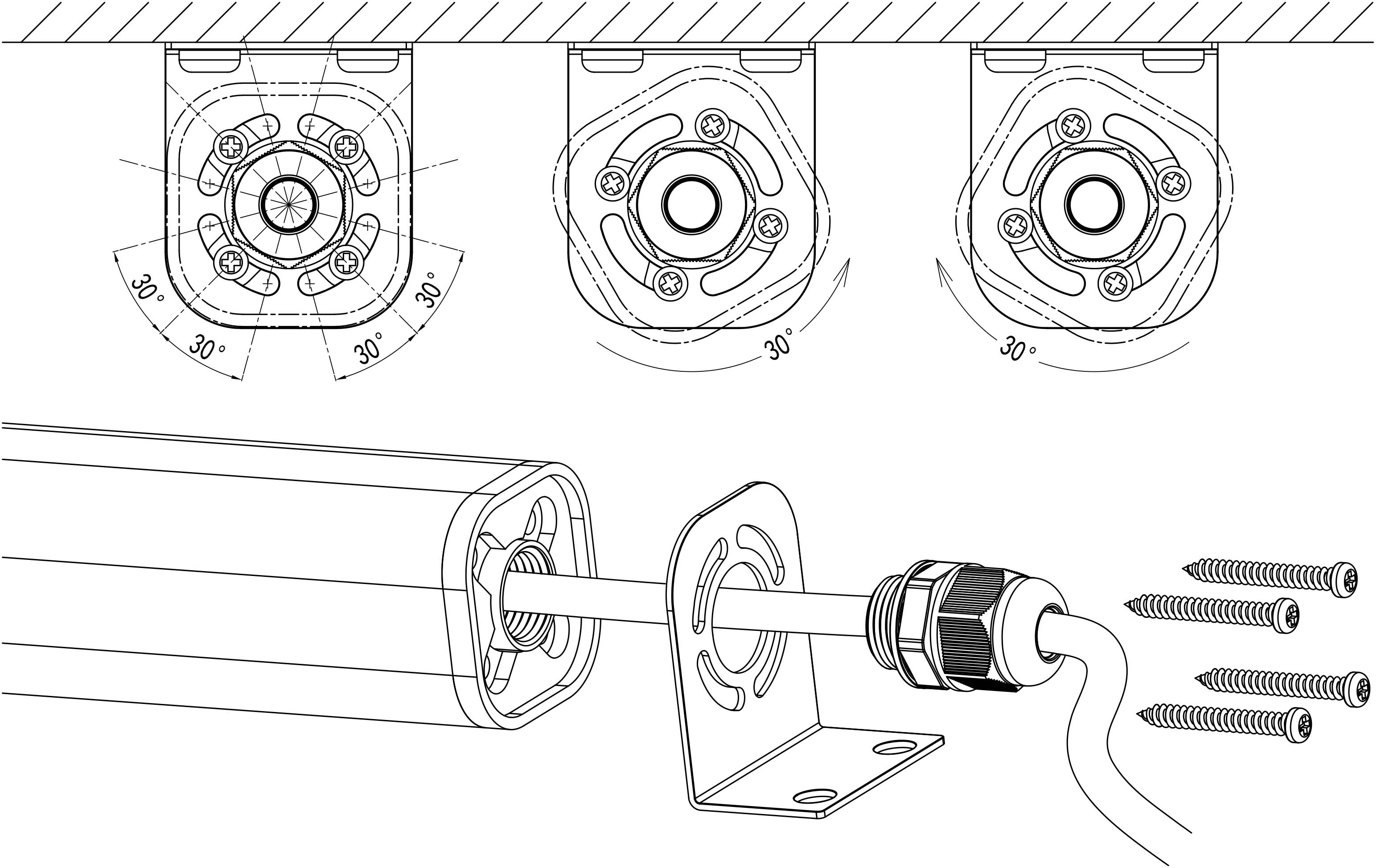

- L multi-angle fixing part
- Suspension system

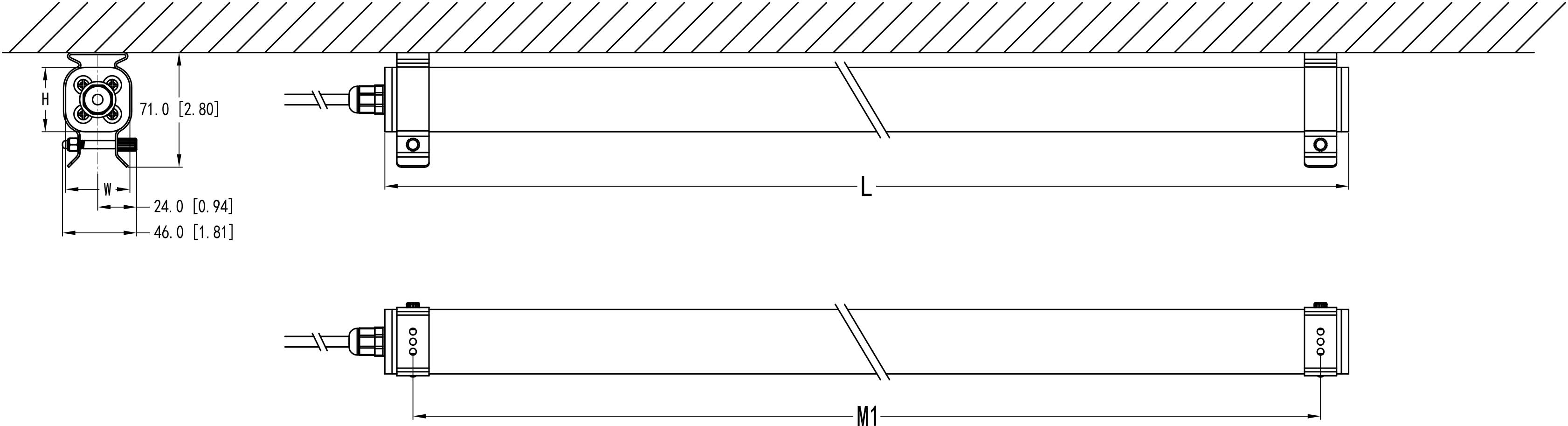

1. Single Mounting ΩSprings clip

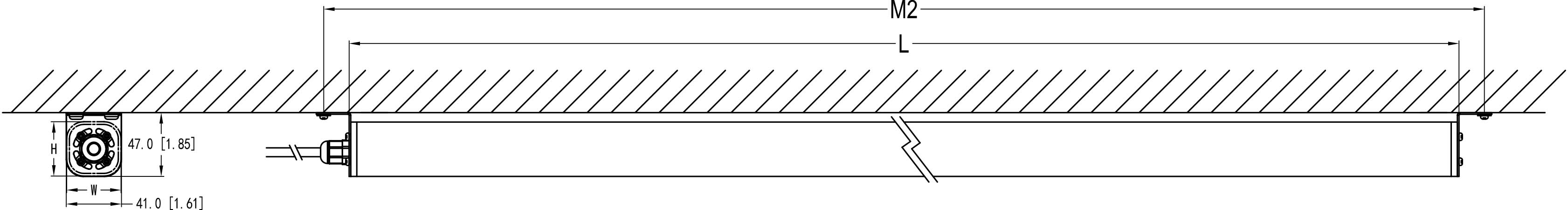

L multi-angle fixing part
|
Item No. |
L mm [inch] |
M1 mm [inch] |
M2 mm [inch] |
W mm [inch] |
H mm [inch] |
|
LL16C30 |
815 [32.09] |
780 [30.71] |
855 [33.66] |
40 [1.57] |
40 [1.57] |
|
LL16C60 |
1360 [53.54] |
1325 [52.17] |
1400 [55.12] |
40 [1.57] |
40 [1.57] |
Notes:
1．Dimension unit: mm [inch]
2．Dimension tolerance: +/-1 [0.04]

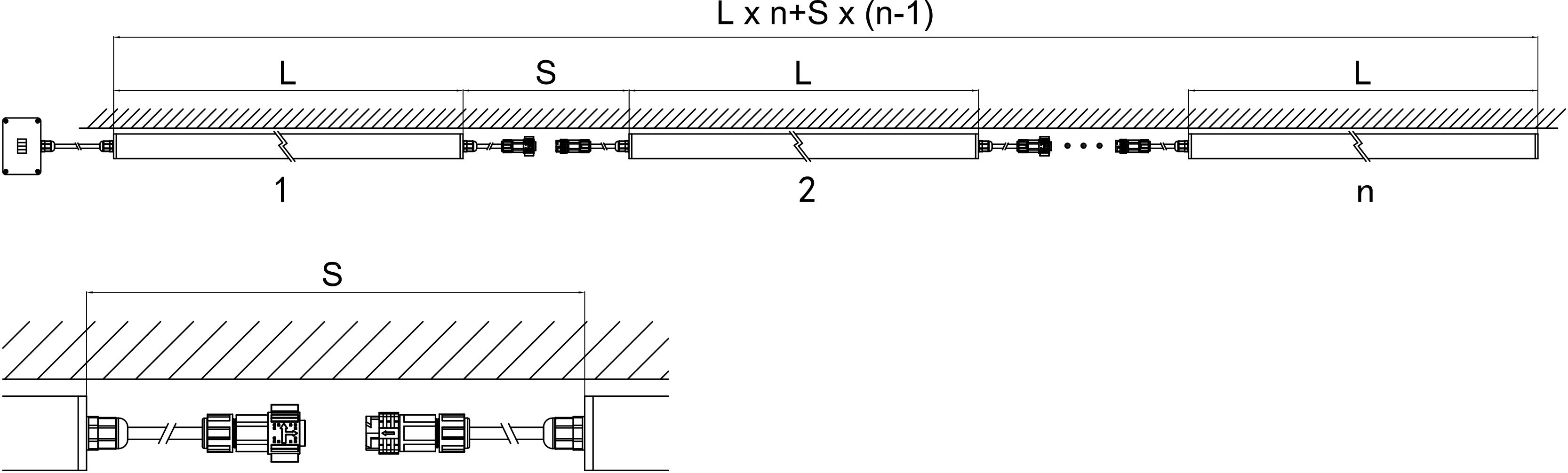

2. Linkable Mounting
|
Item No. |
L mm [inch] |
S mm [inch] |
W mm [inch] |
H mm [inch] |
Total Linkable Power |
|
LL16C30 |
815 [32.09] |
200 [7.87] |
40 [1.57] |
40 [1.57] |
≤450W |
|
LL16C60 |
1360 [53.54] |
200 [7.87] |
40 [1.57] |
40 [1.57] |
≤450W |
Notes:
1．Dimension unit: mm [inch]
2．Dimension tolerance: +/-1 [0.04]

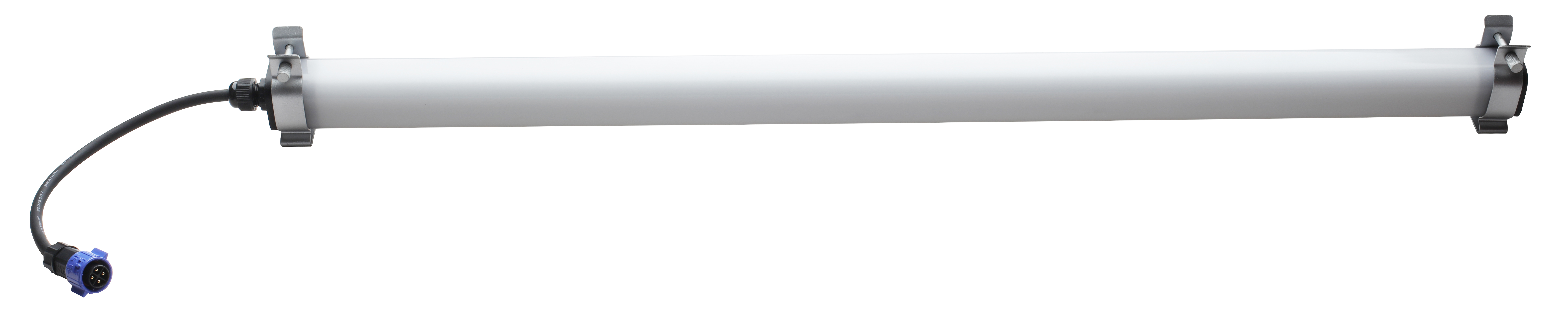

Head Light

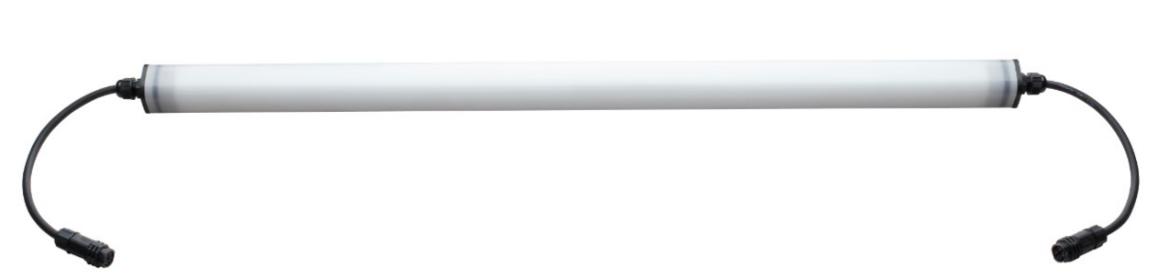

Middle Light

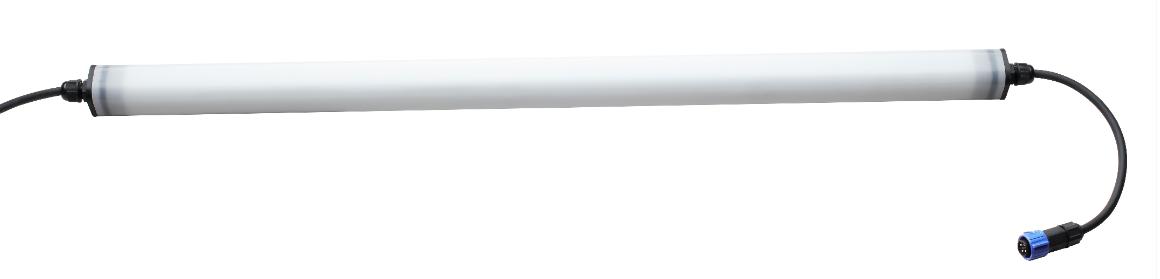

End Light

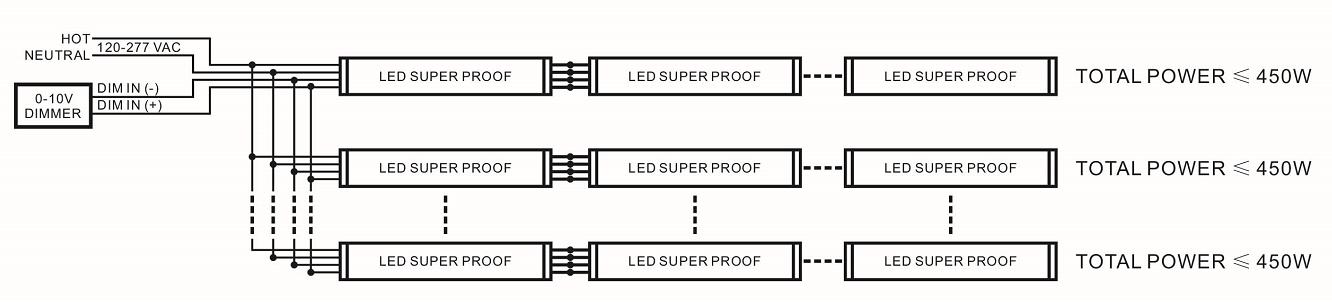

Standard Lighting System:
Input: 100-277V AC, with Max. 2×1.0 sq.mm power
Recommended Max. linkable quantity: LL16C30: 15pcs; LL16C60: 7pcs

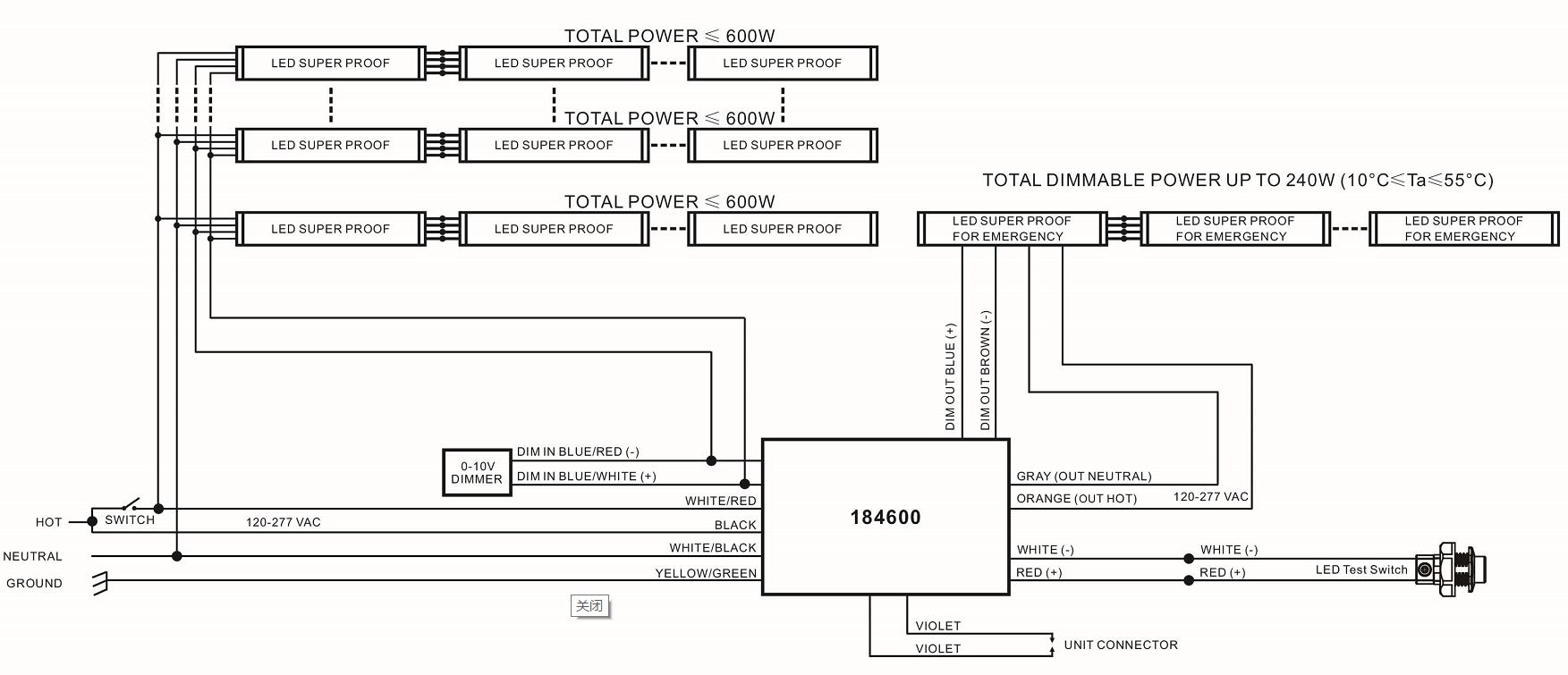

Emergency Lighting System
Input: 100-277V AC, with Max. 4×0.75 sq.mm power
Recommended linkable load quantity:
LL16C30: 8pcs; Normal power: 30W; Emergency power: 4.5W; Emergency time: over 90 minutes
LL16C60: 4pcs; Normal power: 60W; Emergency power: 9W; Emergency time: over 90 minutes

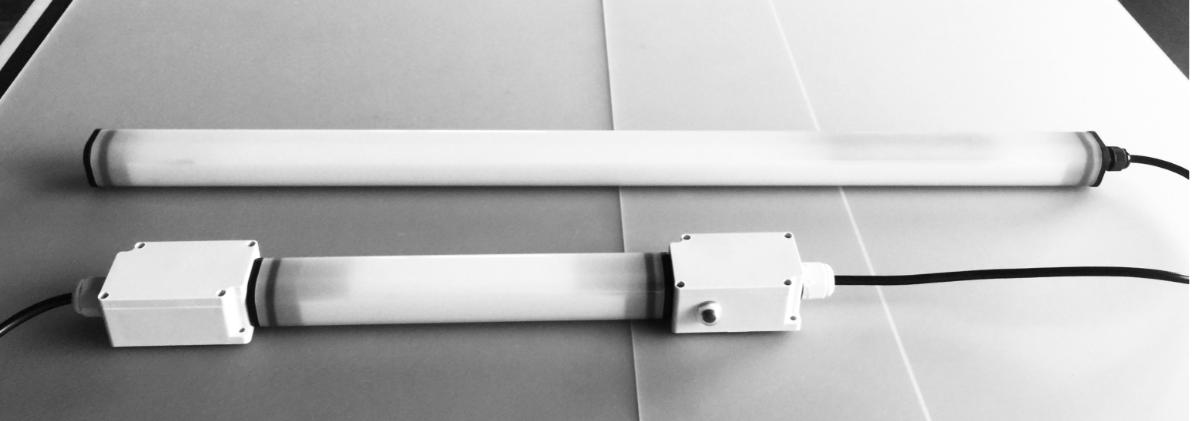

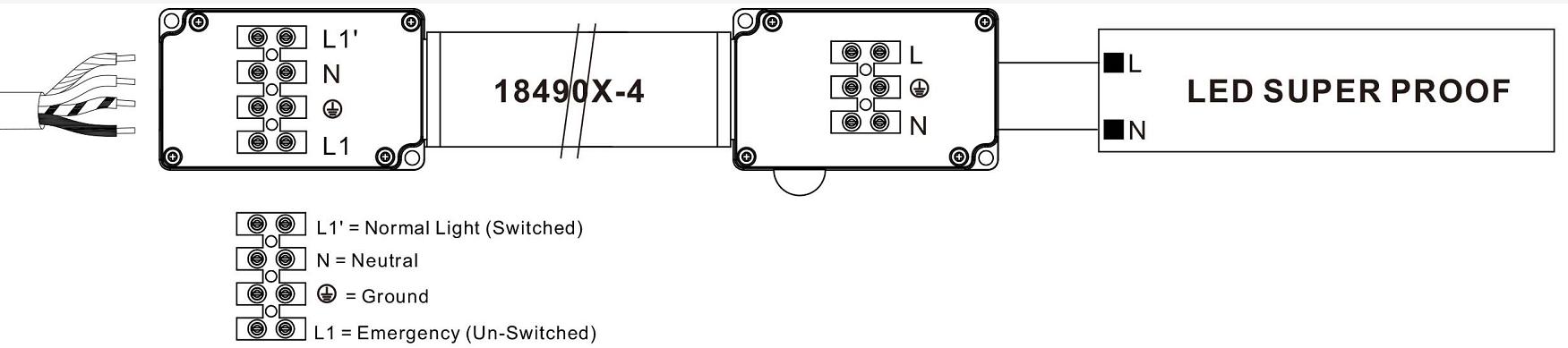

Emergency Lighting System
With 18490X-4 Linear Emergency Equipment
Input: 100-277V AC, with Max. 4×0.75 sq.mm power
Recommended configuration:
LL16C30 + 184900-4：Normal power: 30W; Emergency power: 4W; Emergency time: over 90 minutes
LL16C60 + 184901-4; Normal power: 60W; Emergency power: 9W; Emergency time: over 90 minutes

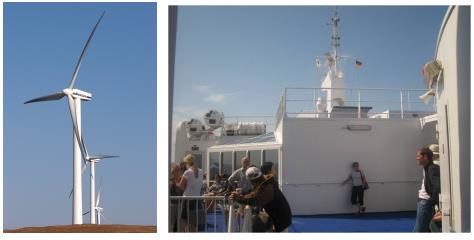

Wind Power or Ships

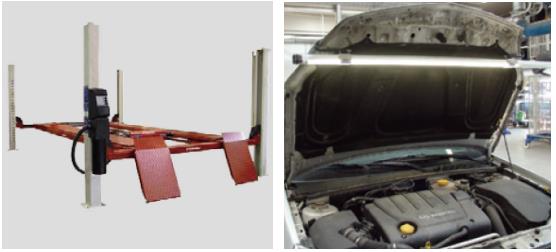

Garages

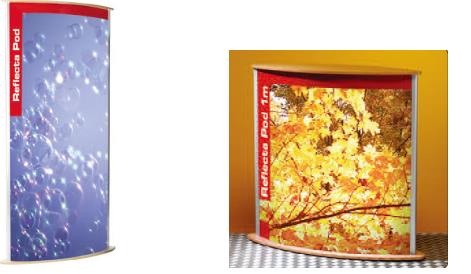

Light boxes
Any other harsh indoor and outdoor locations
