Ce Integrated Led Ac + Emergency Driver 18450x (184500/184501)
Short Description:
184500 CE Integrated LED AC + Emergency Driver, Normal mode: 150-600mA, 18-60V selectable; Emergency mode: 1.8-25.2W 1-3 hours selectable.
184501 CE Integrated LED AC + Emergency Driver Normal mode: 600-1000mA, 18-60V selectable; Emergency mode: 1.8-25.2W 1-3 hours selectable.

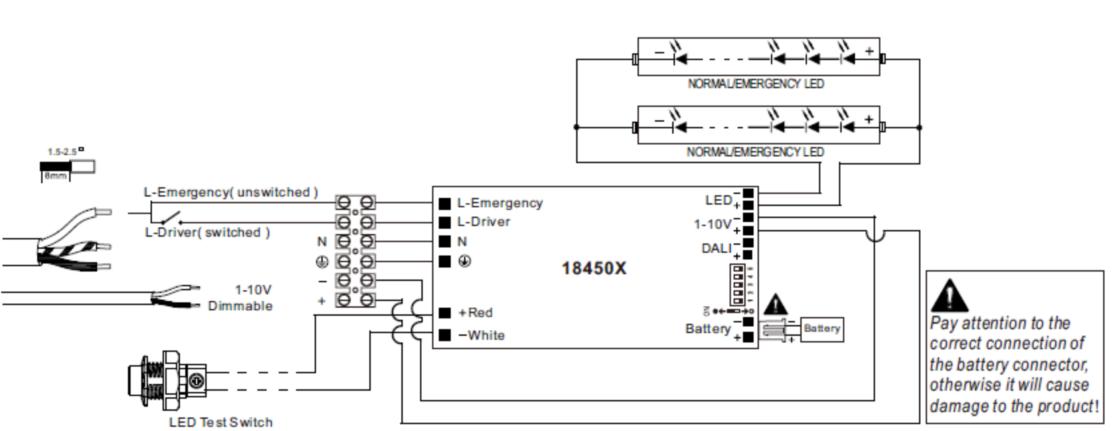

1. A module that integrates the functions of AC LED driver and emergency driver provides a simpler wiring method and a more cost-effective emergency solution for LED lighting fixtures.
2.With external terminal block for flexible wiring connection.
3. External battery pack can be replaced conveniently. Matching with different types of the designated battery packs, and by setting dipswitches, end users can get the preferred emergency power and emergency time easily.
4. Typical application: Suitable for indoor, dry and damp applications. Small height is ideal for slim LED lighting fixtures. For installed inside the lighting fixtures which need work in both normal and emergency operation. E.g. LED Ceiling light, LED panel light, LED Wrapround light and etc.
5. Use this product in 0°C minimum, 50°C maximum ambient temperatures (Ta).
Dipswitch 1/2/3: Setting LED working current in normal
Dipswitch 4/5: Setting emergency output
| Type | 184500 | |||
| Model | 184500-A1-EN-8C1.0 | 184500-A1-EN-8C2.0 | 184500-A1-EN-8C4.0 | 184500-A1-EN-8C5.0 |
| Rated voltage | 120-2770VAC 50/60Hz | |||
| Rated current | 0.15A | 0.15A | 0.16A | 0.17A |
| Rated power | 31W (Max.) | 32W (Max.) | 34W (Max.) | 36W (Max.) |
| Emergency output | 1.8W – 3 hours2.6W – 2 hours 3.5W – 1.5 hours5.3W – 1 hour | 3.5W – 3 hours5.3W – 2 hours 7W – 1.5 hours10.5W – 1 hour | 7W – 3 hours10.5W – 2 hours14W – 1.5 hours21W – 1 hour | 8.8W – 3 hours13.1W – 2 hours17.5W – 1.5 hours 25.2W – 1 hour |
| Output voltage | 18-60VDC | |||
| Operation frequency | 320kHz≥f≥50kHz | |||
| Power Factor | ≥0.9 | |||
| Battery | 9.6V 1.0Ah, Ni-Cd | 9.6V 2.0Ah, Ni-Cd | 9.6V 4.0Ah, Ni-Cd | 9.6V 5.0Ah, Ni-Cd |
| Charging time | 24 Hours | |||
| Discharge time | >90 Minutes | |||
| Charging current | 0.05A | 0.1A | 0.2A | 0.25A |
| Life time | 5 years | |||
| Charging cycles | >500 | |||
| Operation temperature | 0-50℃ (32°F-122°F) | |||
| Output current | 150mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 600mA ±5% | |||
| Efficiency | 75% | |||
| Abnormal protection | Over load, Inrush current limiting, open circuit, short-circuit Protection with auto-reset | |||
| Wire | 0.5-1.5mm2 | |||
| EMC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3 | |||
| Safety standard | EN 61347-1, EN 61347-2-7, EN 61347-2-13, | |||
| Meas.module mm [inch] | L175 [6.89] x W65 [2.56] x H22 [0.87] Mounting Center: 167 [6.57] | |||
| Meas. battery pack mm [inch] | 9.6V 1.0Ah: L228 [8.98] x W30 [1.18] x H17 [0.67] Mounting Center: 217 [8.54]
9.6V 2.0Ah: L195 [7.68] x W45.5 [1.79] x H24.5 [0.96] Mounting Center: 184 [7.24] 9.6V 4.0/5.0Ah: L263 [10.35] x W65 [2.56] x H35 [1.38] Mounting Center: 252 [9.92] |
|||
| Type | 184501 | |||
| Model | 184501-A1-EN-8C1.0. | 184501-A1-EN-8C2.0 | 184501-A1-EN-8C4.0 | 184501-A1-EN-8C5.0 |
| Rated voltage | 120-277VAC 50/60Hz | |||
| Rated current | 0.24A | 0.25A | 0.26A | 0.26A |
| Rated power | 50W (Max.) | 51W (Max.) | 53W (Max.) | 54W (Max.) |
| Emergency output | 1.8W – 3 hours2.6W – 2 hours 3.5W – 1.5 hours5.3W – 1 hour | 3.5W – 3 hours5.3W – 2 hours 7W – 1.5 hours10.5W – 1 hour | 7W – 3 hours10.5W – 2 hours14W – 1.5 hours21W – 1 hour | 8.8W – 3 hours13.1W – 2 hours17.5W – 1.5 hours 25.2W – 1 hour |
| Output voltage | 18-60VDC | |||
| Operation frequency | 320kHz≥f≥50kHz | |||
| Power Factor | ≥0.9 | |||
| Battery | 9.6V 1.0Ah, Ni-Cd | 9.6V 2.0Ah, Ni-Cd | 9.6V 4.0Ah, Ni-Cd | 9.6V 5.0Ah, Ni-Cd |
| Charging time | 24 Hours | |||
| Discharge time | >90 Minutes | |||
| Charging current | 0.05A | 0.1A | 0.2A | 0.25A |
| Life time | 5 years | |||
| Charging cycles | >500 | |||
| Operation temperature | 0-50℃ (32°F-122°F) | |||
| Output current | 600mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA ±5% | |||
| Efficiency | 75% | |||
| Abnormal protection | Over load, Inrush current limiting, open circuit, short-circuit Protection with auto-reset | |||
| Wire | 0.5-1.5mm2 | |||
| EMC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3 | |||
| Safety standard | EN 61347-1, EN 61347-2-7, EN61347-2-13 | |||
| Meas.module mm [inch] | L195 [7.68] x W65 [2.56] x H22 [0.87] Mounting Center: 187 [7.36] | |||
| Meas. battery pack mm [inch] | 9.6V 1.0Ah: L228 [8.98] x W30 [1.18] x H17 [0.67] Mounting Center: 217 [8.54]
9.6V 2.0Ah: L195 [7.68] x W45.5 [1.79] x H24.5 [0.96] Mounting Center: 184 [7.24] 9.6V 4.0/5.0Ah: L263 [10.35] x W65 [2.56] x H35 [1.38] Mounting Center: 252 [9.92] |
|||
| Phenix Type No. | Measurement LxWxH mm [inch] | Individual unit packaging in weight kg [lb] | Operating temperature | Input voltage | Output voltage | Auto test | AC driver function | AC driver/ballast output power | Emergency power | Lumens @120LM/W | Approval | |||
 |
 |
 |
 |
|||||||||||
| CE INTEGRATED LED AC+EMERGENCY DRIVER 18450X | ||||||||||||||
| 184500-A1-EN-8C1.0 | Module: L175 [6.89] x W65 [2.56] x H22 [0.87] Battery: L228 [8.98] x W30 [1.18] x H17 [0.67] | 0.55 [1.21] | 0-50℃ | AC 120-277V | DC 18-60V | ● | ● | 2.7-25W selectable | 1.8-5.3W | 216-636 | ● | |||
| 184500-A1-EN-8C2.0 | Module: L175 [6.89] x W65 [2.56] x H22 [0.87] Battery: L195 [7.68] x W45.5 [1.79] x H24.5 [0.96] | 0.80 [1.76] | 3.5-10.5W | 420-1260 | ||||||||||
| 184500-A1-EN-8C4.0 | Module: L175 [6.89] x W65 [2.56] x H22 [0.87] Battery: L263 [10.35] x W65 [2.56] x H35 [1.38] | 1.40 [3.09] | 7-21W | 840-2520 | ||||||||||
| 184500-A1-EN-8C5.0 | Module: L175 [6.89] x W65 [2.56] x H22 [0.87] Battery: L263 [10.35] x W65 [2.56] x H35 [1.38] | 1.40 [3.09] | 8.8-25.2W | 1056-3024 | ||||||||||
| 184501-A1-EN-8C1.0 | Module: L195 [7.68] x W65 [2.56] x H22 [0.87] Battery: L228 [8.98] x W30 [1.18] x H17 [0.67] | 0.60 [1.32] | 0-50℃ | AC 120-277V | DC 18-60V | ● | ● | 10.8-42W selectable | 1.8-5.3W | 216-636 | ● | |||
| 184501-A1-EN-8C2.0 | Module: L195 [7.68] x W65 [2.56] x H22 [0.87] Battery: L195 [7.68] x W45.5 [1.79] x H24.5 [0.96] | 0.80 [1.76] | 3.5-10.5W | 420-1260 | ||||||||||
| 184501-A1-EN-8C4.0 | Module: L195 [7.68] x W65 [2.56] x H22 [0.87] Battery: L263 [10.35] x W65 [2.56] x H35 [1.38] | 1.40 [3.09] | 7-21W | 840-2520 | ||||||||||
| 184501-A1-EN-8C5.0 | Module: L195 [7.68] x W65 [2.56] x H22 [0.87] Battery: L263 [10.35] x W65 [2.56] x H35 [1.38] | 1.40 [3.09] | 8.8-25.2W | 1056-302 | ||||||||||

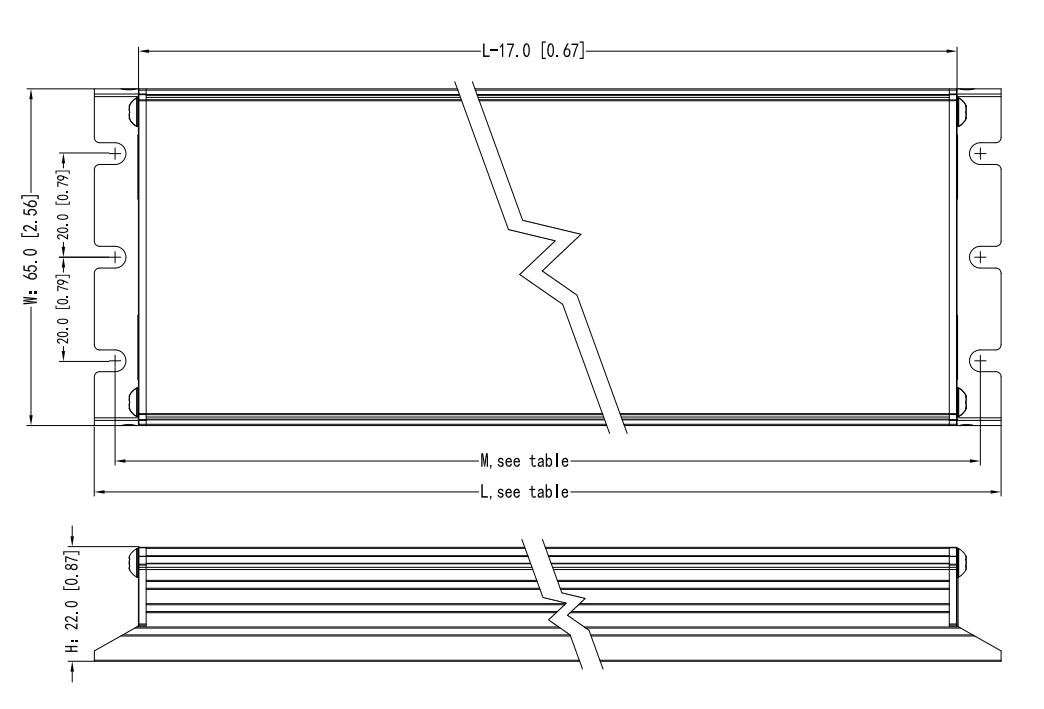

184500x
| Item No. | L mm [inch] | M mm [inch] | W mm [inch] | H mm [inch] |
| 184500 | 175 [6.89] | 167 [6.57]) | 65 [2.56] | 22 [0.87] |
| 184501 | 195 [7.68] | 187 [7.36] | 65 [2.56] | 22 [0.87] |

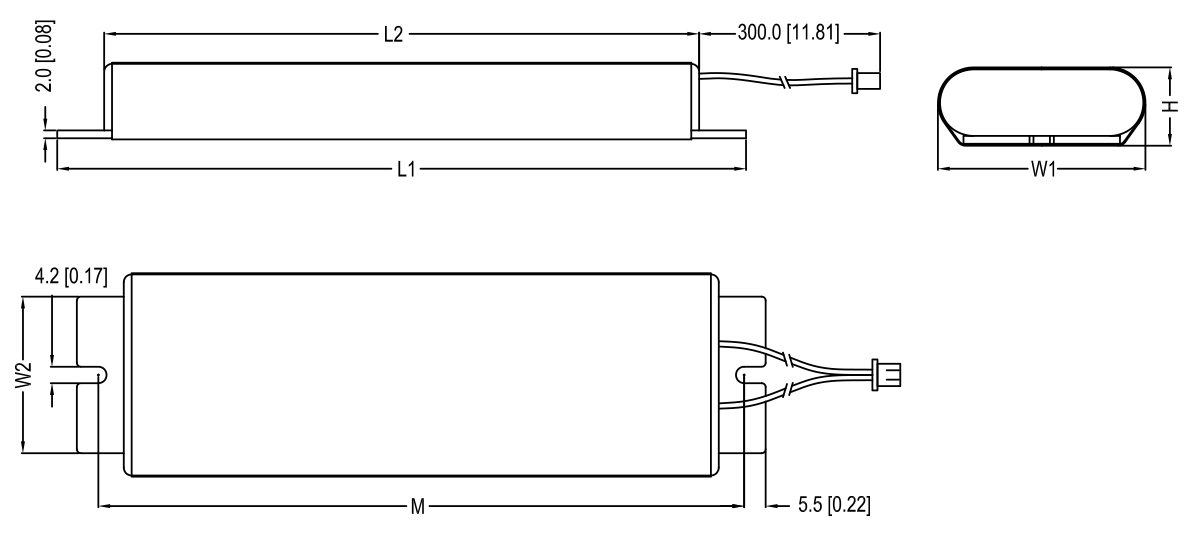

BATTERY
| Battery model | Spec. | L1 | L2 | M | W1 | W2 | H |
| mm [inch] | mm [inch] | mm [inch] | mm [inch] | Mm [inch] | mm [inch] | ||
| 8C1.0 | 9.6V 1.0AH | 228 [8.98] | 195 [7.68] | 217 [8.54] | 30 [1.18] | 20 [0.79] | 17 [0.67] |
| 8C2.0 | 9.6V 2.0AH | 195 [7.68] | 170 [6.69] | 184 [7.24] | 45.5 [1.79] | 40 [1.57] | 24.5 [0.96] |
| 8C4.0 | 9.6V 4.0AH | 263 [10.35] | 236 [9.29] | 252 [9.92] | 65 [2.56] | 40 [1.57] | 35 [1.38] |
| 8C5.0 | 9.6V 5.0AH | 263 [10.35] | 236 [9.29] | 252 [9.92] | 65 [2.56] | 40 [1.57] | 35 [1.38] |

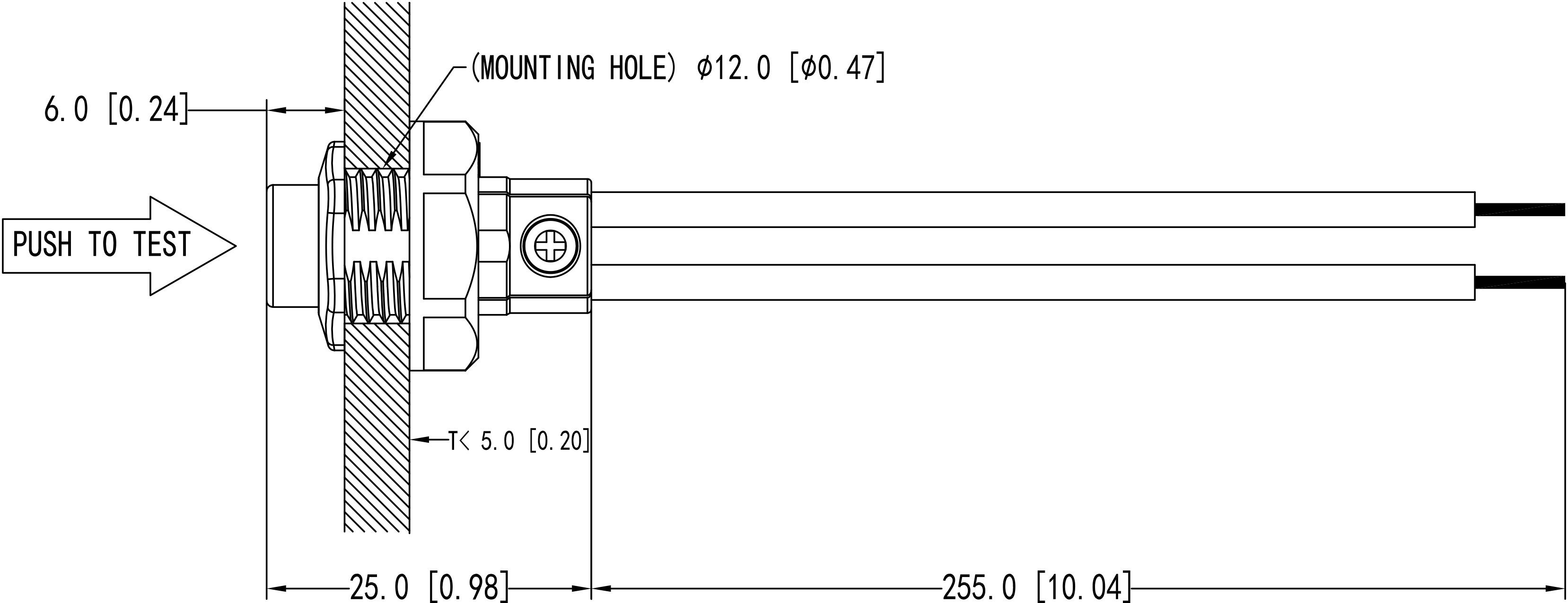

LED TEST SWITCH (LTS)
Dimension in millimetres [inches in brackets]
Tolerance:±1mm [0.04]
