2022 wholesale price Emergency Kit - Linear Emergency Equipment 18490X-X – Phenix Detail:

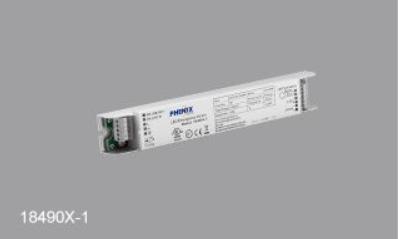

18490X-1 Linear LED Emergency Driver, 4.5W, 9W, 13.5W, 18W, 10W

184900-1 4.5W Linear LED Emergency Driver with terminal block and built-in battery
184901-1 9W Linear LED Emergency Driver with terminal block and built-in battery
184902-1 13.5W Linear LED Emergency Driver with terminal block and built-in battery
184903-1 18W Linear LED Emergency Driver with terminal block and built-in battery
184904-1 10W Linear LED Emergency Driver with terminal block and built-in battery

This is the most compact size of led emergency backups in the world which can be mounted inside any type of ultra-slim linear LED lighting fixtures or narrow and small space. Size for complete product: Length 200 [7.87], Width: 30 [1.18], Height: 22 [0.87] mm [inch]

CSA and UL listed for field installation, CEC Title 20 approved.

With external terminal block for flexible wiring connection. Built-in battery pack cannot be field replaceable.

Typical application: Suitable for indoor, dry and damp applications. Perfectly compatible with both DC LED loads and AC LED luminaires. Ideal for installed inside the lighting fixtures, e.g. LED linear light, LED wall pack, LED Ceiling light, and etc.

Use this product in 0°C minimum, 50°C maximum ambient temperatures (Ta).

vabw

1. Emergency operation of LED light source and luminaires, for both factory and field installation.

2. Perfectly compatible with both DC LED loads and AC LED tubes or bulbs.

3. Constant emergency power output, wide range of output voltage from 5 to 300VDC, output current auto adjustable.

4. Various emergency power options:

18490X

Emergency power

184900

4.5W

184901

9W

184902

13.5W

184903

18W

184904

10W

5. Various connection options:

18490X-X

Description

18490X-1

Terminal block

18490X-2

External wires with metal conduits,

simpler wiring for AC luminaire

18490X-3

External wires with metal conduits, for DC LED load and AC luminaire

18490X-4

IP66 Waterproof, for AC luminaire

6. Auto test function reduces the maintenance cost.

7. Extremely slim aluminum housing, built-in Battery.

8. For 18490X-1: Suitable for indoor, dry and damp applications.
